Wacker Neuson - Battery Converter Backpack ACBe - 5100058345
Modular battery-powered internal vibrator ACBe: Unique freedom of movement

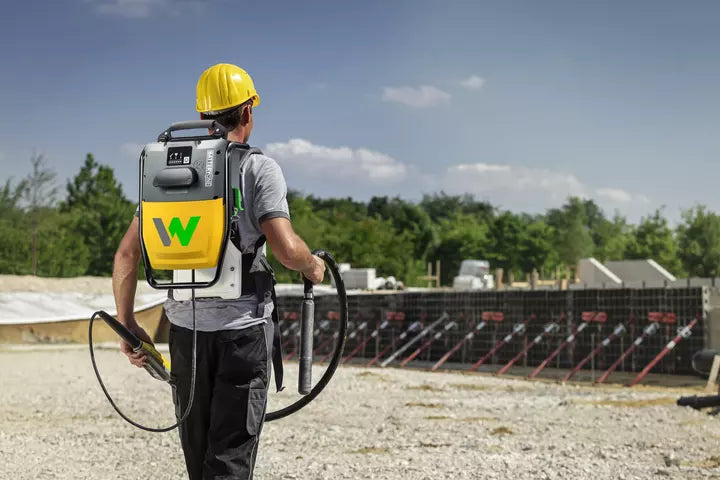

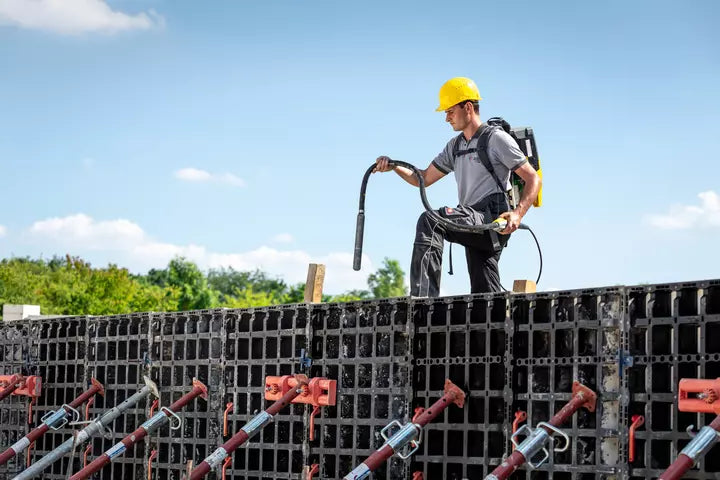

The battery-powered internal vibrator with integrated converter offers the user maximum flexibility on the construction site during concrete consolidation. The operator benefits from greater freedom of movement and an unrestricted work radius because there is no need to pull along a cable or protection hose. This is especially helpful when working on formwork and scaffolding. Remote areas can be accessed without having to route a power supply. The high-performance battery delivers enough energy for a whole workday.
FeatureÂ
- Backpack has integrated converter to provide high cycle/high frequency performance
- Fully adjustable backpack for varying size operators
- Lightweight fabric, padded shoulder straps and even weight distribution allow for extended working periods
- Vibrator connects to the bottom center of the backpack for easy left or right hand operation
- The operator is not exposed to heat, exhaust fumes and engine noise
- BP1000 battery is easy to install with no special tools
- Six combinations with various heads and shafts
SpecificationÂ
|
Dimensions |
|
|
L x W x HÂ |
296 x 236 x 561 mm |
|
Operating weight with BP1000 |
15 kg |
|
Weight without battery |
6.9 kg |
|
Operating data |
|
|
Rated current |
20 A |
|
Input voltage (~3) |
51 V |
|
Output voltage (~3) |
34 V |
|
Output frequency |
200 Hz |
|
Output performance |
0.79 kW |
|
Protection class |
IP24D |
