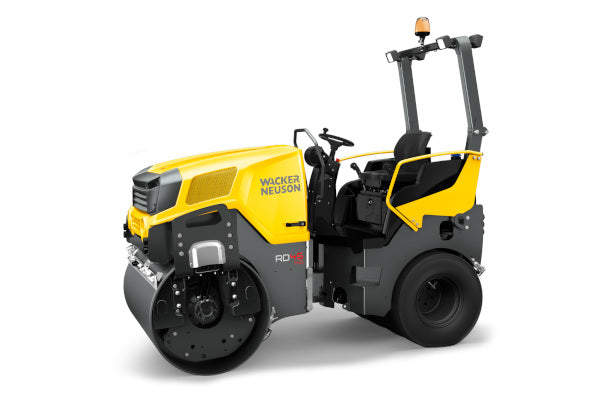

Combi Roller RD45-140c DPF - 5100055780

FEATURES

• The ergonomic work platform is designed for reduced vibration. The low vibration, easy access and operability of all control elements increase working comfort, operator satisfaction and operator health. This ensures a higher level of efficiency.
• All RD and RC rollers have the same simple operating concept. This offers advantages for rental customers, as long instruction and incorporation into work are not necessary and the machine can be used immediately and efficiently.
• There is a lower risk of collisions and damage because the operator can quickly get everything under control.
• The compact design provides an excellent view of the drums. This makes maneuvering and approaching walls and obstacles easier. This means less damage and a high quality result.
• The operator has excellent 360° visibility. Fewer mirrors and no rear-view camera are required. In addition, the risk of accident is reduced.
• The compact design allows a high level of maneuverability in tight space, resulting in faster work.
• The operator panel has a voice-neutral, purely graphical interface. This visually attractive display makes operation easy and intuitive. This allows the operator to find his way around very quickly.
• The operating displays of the machine are integrated in the operator panel. Due to this, the operator has all machine functions in view at all times.
• The overhang over the edge of the drum begins very high up allowing for compaction to take place right to the edge of higher walls. This allows for a wider range of applications and greater efficiency.
• The three-point articulated pendulum joint results in an even distribution of the weight on the front and rear drums/tires. This allows an even, high-quality compaction result.
• The even distribution of the weight on the front and rear drums/tires offers a high level of tipping safety as well as stability on turns. This increases safety.
• The even weight distribution reduces tire wear, saving spare parts costs.
• The hydraulic traction control (Automatic Slip Control) ensures that the wheels do not spin. This means the roller achieves excellent gradeability and high mobility, even on rough terrain.
• The hydraulic traction control increases operator safety, as the roller does not slip as quickly on slopes.
• The ROPS bar folds down to allow for compact transport and storage dimensions. This saves time and expense.
• By folding down the ROPS bar, the spectrum of applications expands, because the roller can also pass under low clearances. This makes it possible for use in the inner courtyards of buildings, etc.

Combi Roller RD45-140c DPF - 5100055780: Complete Guide

Introduction

When it comes to road construction and asphalt compaction, contractors need machines that deliver performance, safety, and efficiency. The Combi Roller RD45-140c DPF - 5100055780 is one of Wacker Neuson’s premium compactors, built with advanced technology and engineered to handle a wide range of paving and soil compaction tasks.

With its Diesel Particulate Filter (DPF) for emissions control, dual-drum and pneumatic tire design, and operator-friendly features, the RD45-140c is a go-to choice for road builders worldwide. In this guide, we’ll cover everything you need to know about this model—features, specifications, benefits, applications, maintenance, and why it’s a smart investment for contractors.

What Is the Combi Roller RD45-140c DPF - 5100055780?

The RD45-140c DPF is a combi roller, meaning it combines a vibratory steel drum in the front with pneumatic rubber tires in the rear. This design provides the best of both worlds: the steel drum achieves deep, uniform compaction, while the rubber tires knead and seal asphalt surfaces for a smooth finish.

The model number 5100055780 refers to the specific configuration of the RD45-140c equipped with a Diesel Particulate Filter (DPF), ensuring compliance with strict EPA Tier 4 emission standards.

Key Features of the RD45-140c DPF

1. Combi Roller Design

• Steel Drum + Pneumatic Tires: Front drum compacts layers efficiently, while rear tires provide surface sealing and improved finish.

• Ensures maximum surface density and compaction quality.

2. Diesel Particulate Filter (DPF)

• Reduces harmful exhaust emissions.

• Ensures compliance with Tier 4 emission standards, making it environmentally friendly.

3. High Compaction Force

• Vibratory drum delivers adjustable amplitude and frequency.

• Flexible enough for both asphalt compaction and soil stabilization.

4. Operator Comfort and Safety

• Ergonomic operator platform with excellent visibility.

• Adjustable controls reduce fatigue during long shifts.

• Integrated Roll-Over Protective Structure (ROPS) for safety.

5. Advanced Water System

• Pressurized water spray prevents asphalt from sticking to the drum.

• Multi-level filters keep nozzles clog-free, reducing downtime.

6. Ease of Maintenance

• Easy access to service points.

• Self-diagnostic systems reduce troubleshooting time.

Technical Specifications of the Combi Roller RD45-140c DPF

• Model: RD45-140c DPF

• Part Number: 5100055780

• Machine Type: Combi roller (steel drum + pneumatic tires)

• Operating Weight: Approx. 10,000 – 11,000 lbs (depending on configuration)

• Engine: Diesel with integrated DPF, EPA Tier 4 compliant

• Drum Width: ~54 in (1,400 mm)

• Vibration Frequency: 50–60 Hz adjustable

• Amplitude: Low and high settings

• Centrifugal Force: Approx. 14,000–16,000 lbs

• Travel Speed: Up to 7.5 mph (12 km/h)

• Water Tank Capacity: ~160 liters (varies slightly by region)

Benefits of the RD45-140c DPF

1. Superior Compaction Quality

The combination of a vibratory drum and pneumatic tires ensures optimal compaction for both soil and asphalt. The roller delivers uniform density and a smooth surface finish, reducing the risk of future cracking or rutting.

2. Environmental Compliance

With its Diesel Particulate Filter (DPF), the roller meets stringent emission standards, reducing pollutants and supporting environmentally conscious construction practices.

3. Operator Efficiency

The RD45-140c offers ergonomic controls, vibration-dampened seating, and intuitive operation, making it user-friendly even for long hours of use.

4. Fuel and Cost Savings

The machine’s diesel engine is both powerful and fuel-efficient, helping contractors save on operating costs.

5. Durability and Reliability

Built with reinforced steel and robust hydraulics, this roller is designed for long-term use under heavy-duty jobsite conditions.

Applications of the Combi Roller RD45-140c DPF

The RD45-140c DPF is versatile and can be used across multiple applications, including:

• Asphalt Paving Projects: Creating smooth, sealed road surfaces.

• Road Construction: Base and sub-base compaction.

• Commercial Parking Lots: Uniform compaction for large paved surfaces.

• Utility and Pipeline Projects: Soil stabilization and surface preparation.

• Municipal Works: Sidewalks, bike paths, and smaller urban paving projects.

Comparison with Other Rollers

Compared to standard vibratory drum rollers, the Combi Roller RD45-140c offers several advantages:

• Surface Sealing: Pneumatic tires provide kneading action that standard drum rollers lack.

• Fewer Passes Needed: Combines two compaction methods in one machine, improving efficiency.

• DPF Advantage: Meets modern emission standards without sacrificing power.

Maintenance Tips for the RD45-140c DPF

To extend the life and maintain peak performance of your roller, follow these maintenance practices:

1. Daily Inspections

   • Check fluid levels (oil, hydraulic, coolant).

   • Inspect drum and tires for wear or damage.

   • Ensure water system nozzles are clear.

2. Weekly Checks

   • Clean air filters.

   • Inspect DPF system for alerts.

   • Lubricate moving parts.

3. Scheduled Service

   • Follow Wacker Neuson’s recommended maintenance intervals.

   • Service the DPF system to avoid clogging.

4. Storage

   • Store under cover to protect electronic components and hydraulic systems.

Why Contractors Choose the RD45-140c DPF

The Combi Roller RD45-140c DPF - 5100055780 has quickly become a favorite among contractors because it delivers:

• Dual compaction methods in a single pass.

• Compliance with emission regulations, ensuring long-term fleet viability.

• Durability and reliability, reducing unexpected downtime.

• Operator comfort and safety, which improves jobsite productivity.

For contractors handling asphalt paving and soil compaction, the RD45-140c is a cost-effective, future-proof investment.

Conclusion

The Combi Roller RD45-140c DPF - 5100055780 is more than just a compactor—it’s a complete solution for road construction and asphalt paving. With its unique steel drum and pneumatic tire combination, Diesel Particulate Filter compliance, and contractor-focused design, it offers both performance and sustainability.

For projects requiring superior compaction results, environmental compliance, and operator efficiency, the RD45-140c DPF stands out as one of the most reliable and versatile choices available today.

Whether you’re managing large-scale road construction, municipal paving, or commercial development, investing in the Wacker Neuson RD45-140c DPF - 5100055780 ensures long-lasting results and maximum productivity.
