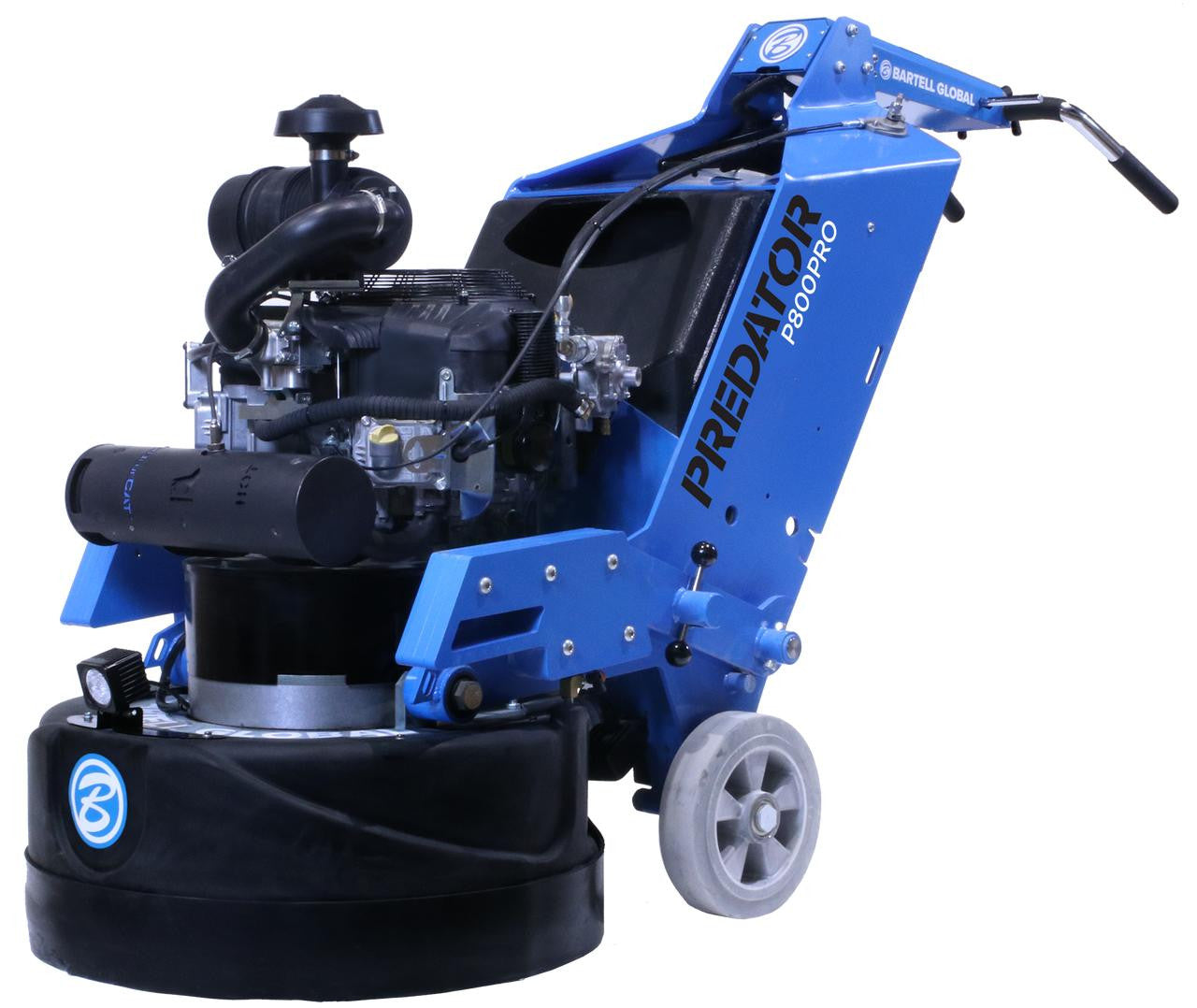

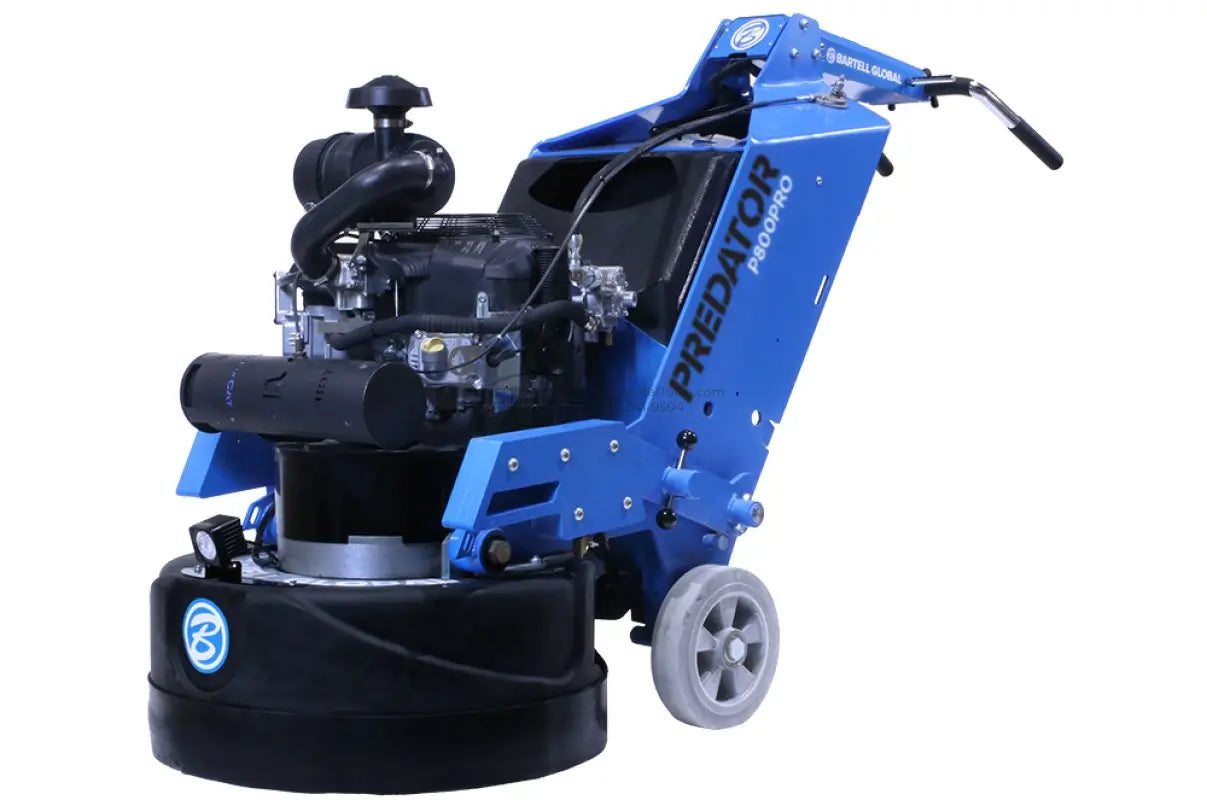

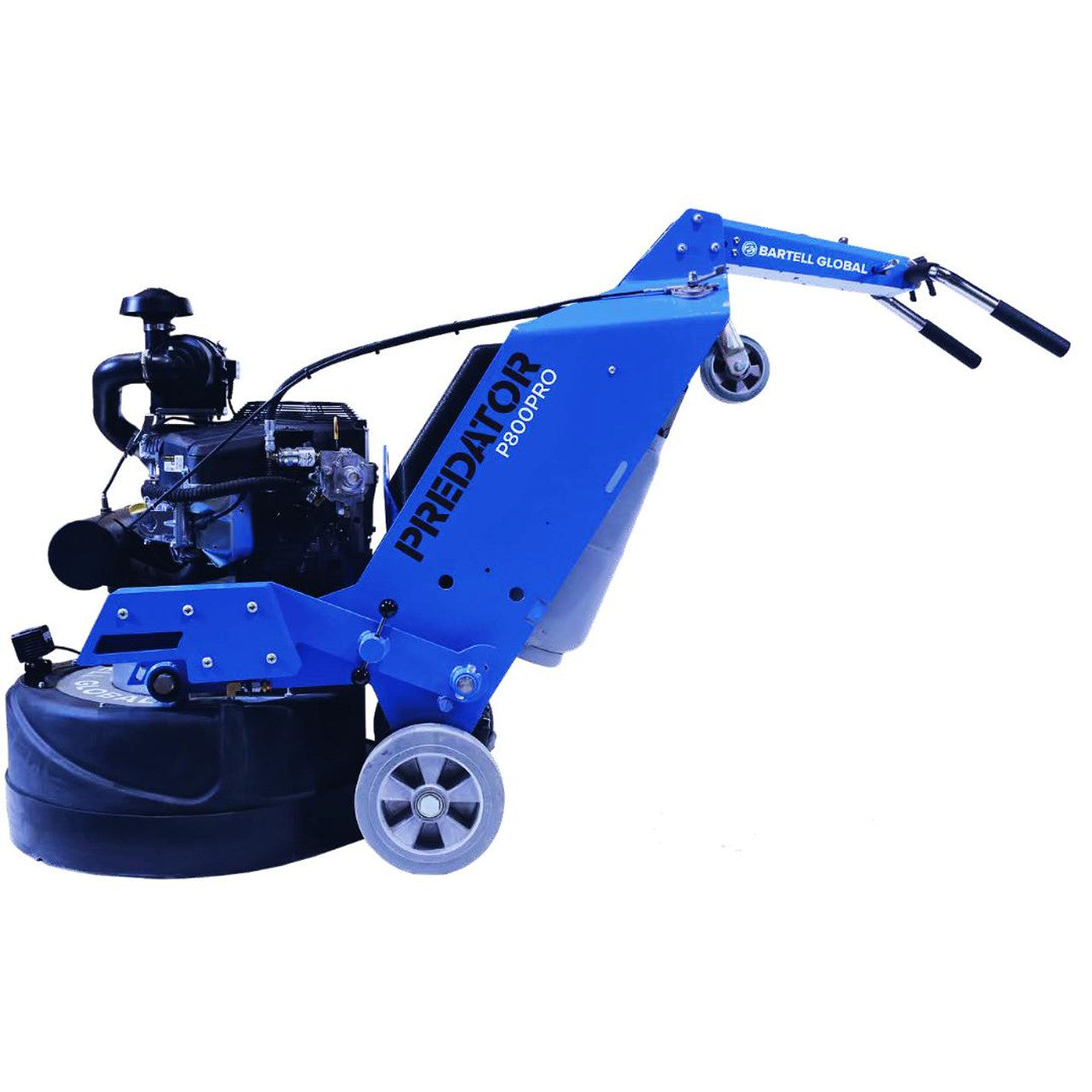

Bartell Global - Predator P800PRO - 3 Headed Planetary, Propane - 98-0053

THE PREDATOR ADVANTAGE

• Contractor-proven three-headed planetary system
• Integrated lifting hook & robust tie down points for secure transport
• LED lights on the front and back for excellent visibility
• Swing weights with ‘Lift Assist’ to lighten the load
• Quick handle adjustment — No pins to pull & keep track of
• Integrated rear travel wheel for easy transport to and from the job site
• Equipped with plates that fit our NEW SlideMAG tooling

MODEL: P800PRO
Power Source: PROPANE
Motor/Engine: 993cc Briggs & Stratton Vanguard
Power Output: 31hp (32 kW)
Variable Head Speed: 491-642 rpm
Water Tank Capacity: 15 gal (56L) - estimated
Vacuum Port: 3" (75mm)
Grinding Force: 720-820 lbs (326-371 kg) - estimated
Individual Head Diameter: 11" (279mm)
Grinding Width: 31" (780mm)
Max Height: HANDLE UP 83.5" (2122 mm)
Min Height: HANDLE DOWN 52" (1314 mm)
Min Length: HANDLE & WEIGHTS FWD 68" (1727 mm)
Max Length: HANDLE & WEIGHTS BACK 92" (2345 mm)
Width: 32" (660 mm)
Machine Weight: 1200 lbs (544 kg) - estimated

Bartell Global - Predator P800PRO - 3 Headed Planetary, Propane - 98-0053

The Bartell Global - Predator P800PRO - 3 Headed Planetary, Propane - 98-0053 is a premium, contractor-grade, propane-powered concrete grinder and polisher engineered for performance, reliability, and versatility on the modern jobsite. With a robust 3-head planetary drive, massive 30-inch working path, and innovative ergonomic features, the P800PRO sets the standard for large-area grinding and polishing tasks in commercial, industrial, and high-end residential settings.

Product Overview & Core Design

Completely redesigned and re-engineered as part of Bartell’s premium Predator line, the P800PRO is built around a precision-balanced, 3-head planetary technology that ensures smooth operation, maximum floor contact, and contractor-proven productivity. Unlike many high-output grinders, this model is powered by a Briggs & Stratton Vanguard 993cc, 35 HP propane engine, which offers both the mobility of cordless performance and serious torque—reducing dependency on jobsite power and enabling work in remote or open-air environments.

With a heavy-duty, 3/8" steel plate frame, advanced belt drive system, and swing-weight system, this grinder is designed for production grinding, polishing, and surface prep on concrete, terrazzo, and stone slabs. Adjustable, spring-assisted weights and variable head pressure give operators the flexibility to tackle aggressive removal or delicate polishing with a single machine.

Key Features

• Propane Propulsion: 35 HP, 993cc Briggs & Stratton Vanguard engine provides high performance, low emissions, onboard mobility, and easy propane refueling. No reliance on large industrial power sources.

• True 3-Head Planetary Drive: Three counter-rotating, 11-inch grinding heads melt away high spots, coatings, adhesives, or polish floors evenly and quickly, leaving a consistent finish over 30 inches.

• Variable Head Speed: Speeds up to 890 RPM (estimated 491–890 RPM) provide adaptability for everything from surface prep or aggressive material removal to fine finish work and polishing.

• Precise Weight Distribution & Swing Weights: Spring-assisted, quickly adjustable weights allow operators to customize downward pressure, maximizing production on tough floors or minimizing marks on sensitive surfaces.

• 12.5-Gallon Water Tank: Onboard water enables wet grinding, dust suppression, and slurry management, while a 3-inch vacuum port (75mm) allows for rapid connection to industrial dust extractors for OSHA-compliant dust control.

• Tool-Free Height & Handle Adjustments: Operators can instantly set up or collapse the handlebar without pins, increasing jobsite efficiency and transport ease.

• LED Work Lighting: Bright forward and rear LEDs provide clear visibility of the work surface during night shifts, low-light, or indoor jobs.

• Quick-Change Propane Tank Latch: Simple refueling means minimal downtime—especially valuable on large commercial pours or continuous shift applications.

• Durable Transport Wheels, Integrated Lift/Tie Points: Move the 1,309 lb machine around the jobsite and onto transport vehicles safely and efficiently.

Technical Specifications

Performance & Productivity

• Exceptional Grinding & Polishing Performance: The upgraded planetary system delivers consistent, highly productive grinding across all heads—removing coatings, leveling slabs, and achieving a superior polish on concrete and other hard surfaces.

• High Mobility & Jobsite Independence: Propane engine eliminates the power restrictions of large corded grinders, so operators can work virtually anywhere, with fewer generators or power drop limitations.

• All-Day Operator Comfort: Quick handle, swing weight, and lift assist designs prioritize ergonomics—minimizing fatigue, maximizing safety, and boosting workflow.

• Reliable Dust Extraction: Strong dust skirt paired with industrial HEPA vacuum ports enable efficient dust control—essential for health, safety, and regulatory compliance.

Applications

• Large Commercial Concrete Grinding/Polishing: Malls, warehouses, airports, production facilities, and stadiums.

• Industrial Surface Prep: Removes coatings, adhesives, and paint from large industrial floors and warehouses.

• Retail & High-End Residential Finishes: Achieves consistent, swirl-free finishes for polished concrete flooring in luxury homes or retail storefronts.

• Garage & Vehicle Facility Overhauls: Resurfaces worn, cracked, or pitted garage floors—perfect for prepping high-traffic areas or improving reflectivity.

Advanced Features That Set the P800PRO Apart

• Quick-Change SlideMAG Tooling System: Fast swaps between diamond segments/tool plates saves hours on multi-step jobs.

• Integrated Lift and Winch Points: Make loading, securement, and maintenance easier for crews on the move.

• Heavy Steel Frame: Built to absorb vibration, deliver even results, and resist jobsite abuse or impact damage.

• Bright Work Lighting: Essential for night work, interior remodelling, or poor weather jobs.

• EPA-Certified Low Emissions System: Meets modern environmental regulations for use in well-ventilated commercial, industrial, or open-air environments.

User & Industry Reviews

• Superior Productivity: Crews report outstanding GPM (grind per minute) performance and enhanced finish quality versus single- or dual-head models.

• Operator-Focused Ergonomics: Highlights include the quick handle adjustments, easy propane tank changes, and quieter running than many comparable propane models.

• Easy Maintenance: Belt drive, easily accessible service points, and robust componentry minimize downtime, making this a rental and contractor favorite.

• Excellent Dust and Slurry Control: The P800PRO’s skirt and vacuum port are praised for capturing dust and slurry, even in aggressive wet grinding applications.

Maintenance & Best Practices

• Propane Engine: Conduct daily propane and oil level checks, clean engine air filters, and follow OEM tune-up schedules for optimal power and lifespan.

• Belt Drive: Inspect occasionally for wear/adjustment. Belt changes are straightforward and infrequent with typical use.

• Dust Control: Always run with an industrial HEPA dust extractor for optimal safety and site cleanliness.

• Wear Part Swaps: Leverage SlideMAG or compatible tooling for efficient diamond/tooling changes—always check segment wear before each shift.

Frequently Asked Questions

Q: Is the P800PRO suitable for enclosed areas?
A: Propane models must operate in well-ventilated or open areas due to emissions, despite their advanced low-emissions system.

Q: Can you use wet cut methods?
A: Yes, with the integrated water tank and skirt, wet grinding and polishing are fully supported.

Q: How portable is the P800PRO?
A: The skid and robust wheels, combined with lift and tie-down points, make jobsite and transport handling simple for two or three people.

Q: What’s the difference versus electric?
A: Propane models offer power and freedom from cords but require ventilation and regular engine maintenance.

Conclusion

The Bartell Global Predator P800PRO - 3 Headed Planetary, Propane - 98-0053 is a category-defining concrete grinding and polishing powerhouse. Built for productivity, durability, and ease of use, it is the go-to machine for professional contractors seeking unmatched grinding width, surface quality, jobsite mobility, and ergonomic comfort on their largest flooring, prep, and finishing jobs.
