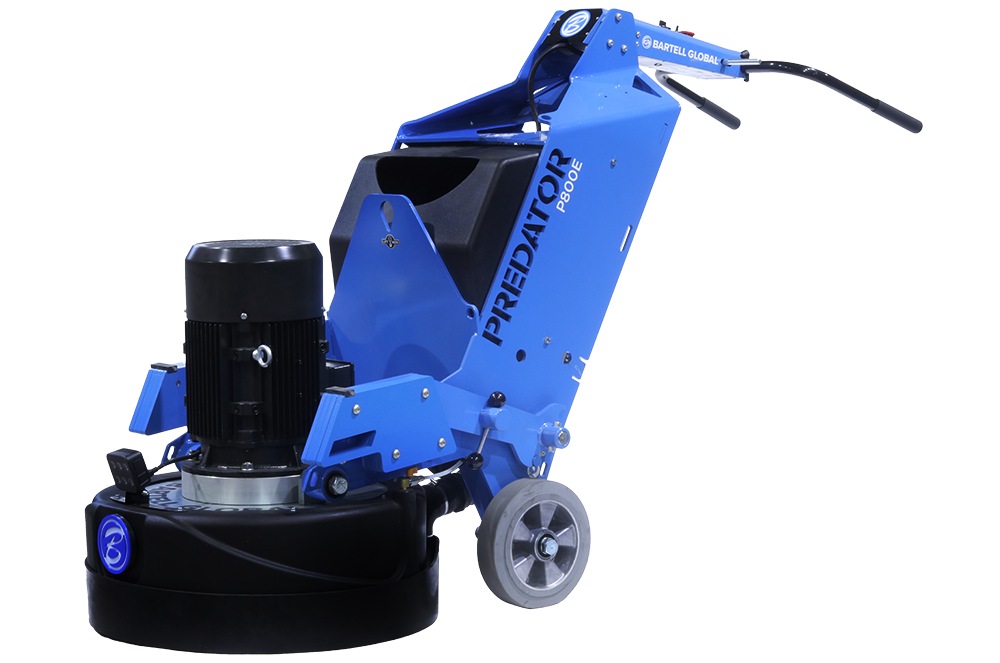

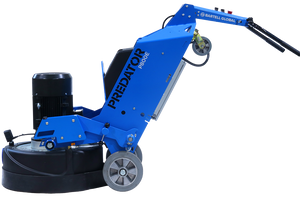

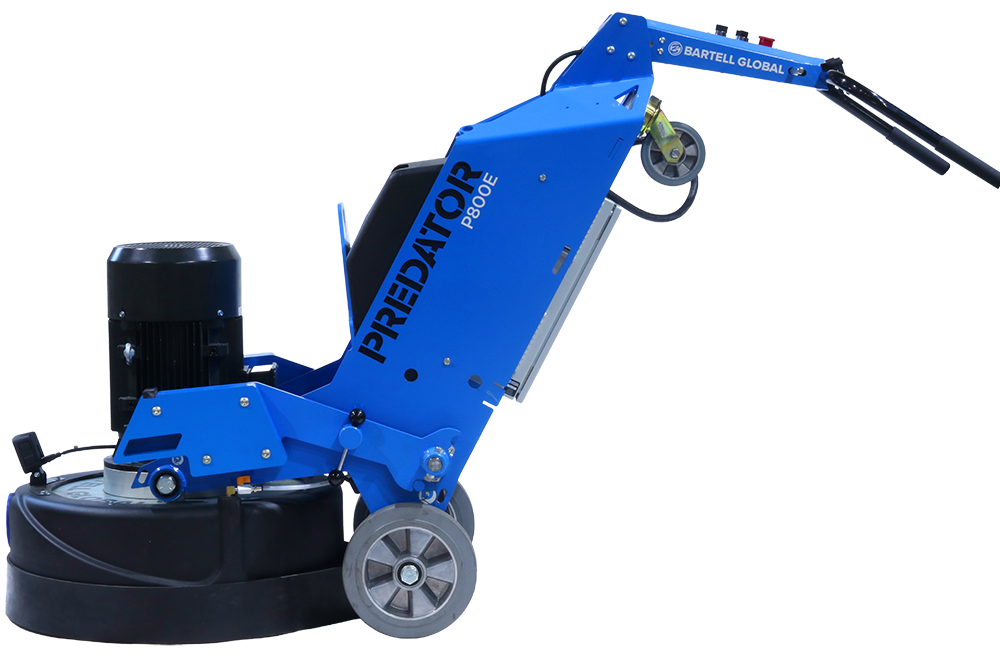

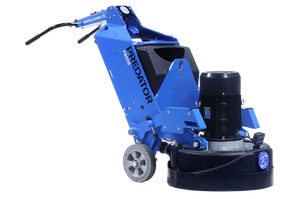

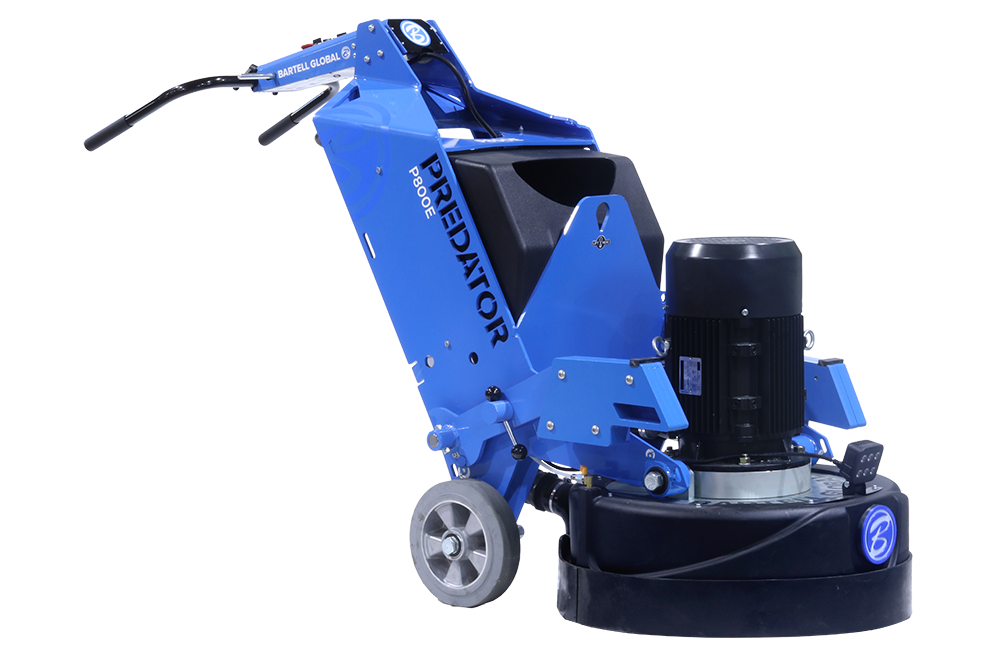

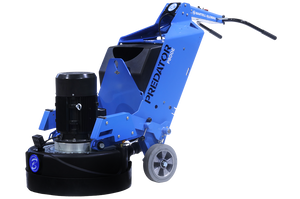

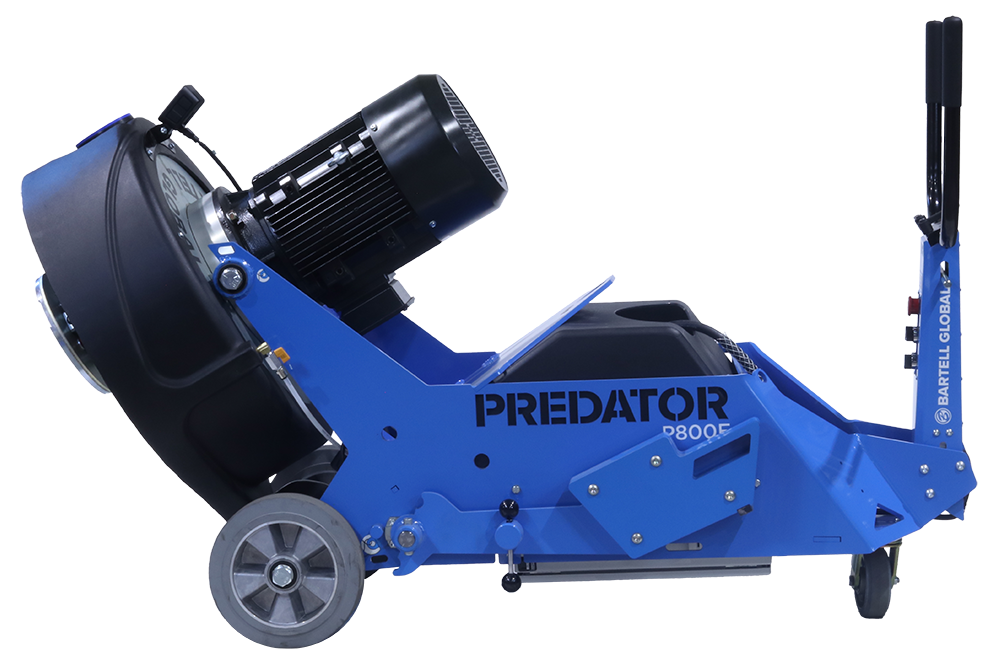

Bartell Global - Predator P800E - 3 Headed Planetary, 460V, Three Phase - 98-0054

Features

• 3-head planetary design
• Precise weight distribution for exceptional balance
• Reliable belt-driven technology
• Quick adjusting handles
• Adjustable spring-assisted swing weights for variable head-pressure
• Heavy-duty 3/8” plate steel frame

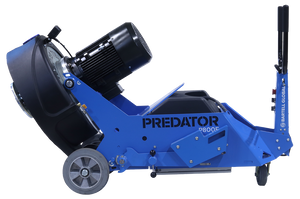

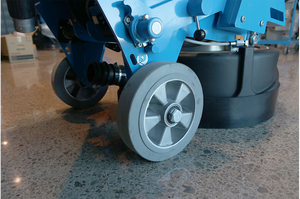

• Integrated transport wheel for safe mobility around the job-site

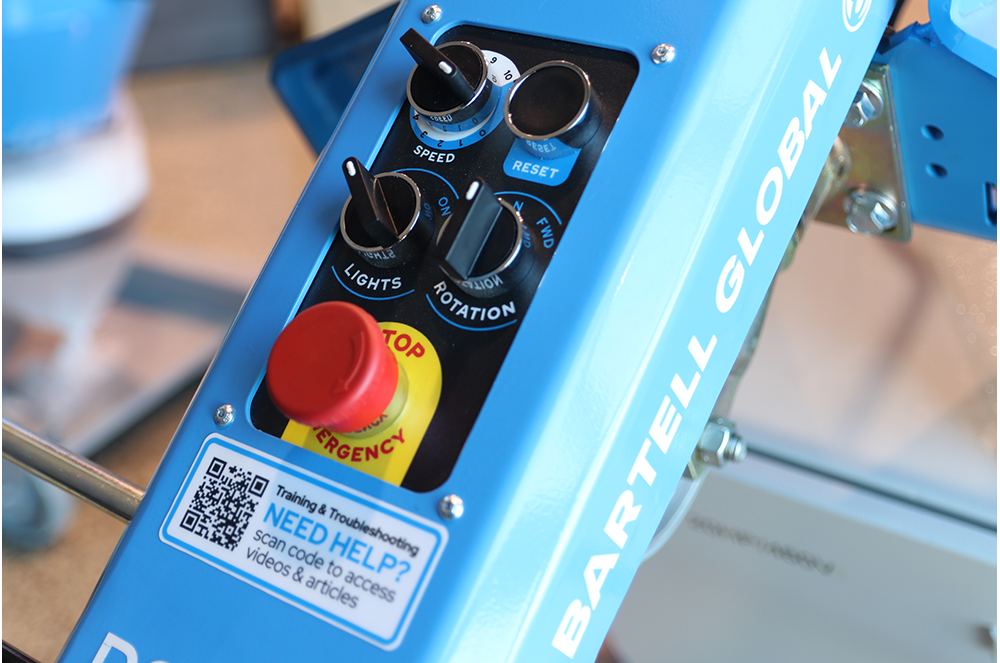

• Variable speed control
• Forward/reverse grinding
• Integrated water tank
• Bright LED work light at both front and rear of the machine
• Adjustable dust skirt for effective dust suppression
• Integrated lift, tie-down, and winch points

Specifications

• Electric Motor: 460V Three Phase
• Power Output: 20 HP
• Variable Head Speed: 890 rpm
• Grinding Heads: 3
• Water Tank Capacity: 12.5 gal
• Vacuum Port: 3”
• Grinding Force: 877 lbs
• Grinding Width: 30”
• Individual Head Diameter: 11”
• Max Height (Handle Up): 82.5”
• Min Height (Handle Down): 51.5”
• Min Length (Handle & Weights Forward): 68.5”
• Max Length (Handle & Weights Back): 92.5”
• Width: 31.5”
• Machine Weight: 1254 lbs

The Bartell Global - Predator P800E - 3 Headed Planetary, 460V, Three Phase - 98-0054 stands out as a best-in-class, electric-powered planetary grinder crafted for professional concrete surface prep, polishing, and restoration. The P800E blends advanced ergonomic engineering, a robust 30-inch grinding path, superior dust control, and reliable heavy-duty construction to deliver unrivaled productivity, performance, and surface finish quality for commercial and industrial contractors.

Core Features & Design

The P800E is a next-generation addition to Bartell’s Predator series, featuring three precision-balanced grinding heads set in a true planetary configuration. This innovative system ensures complete floor contact, maximum flatness, and efficient, even removal or polishing of coatings, adhesives, and high spots across vast areas. As a 460V, three-phase, 20 HP electric grinder, the P800E is engineered for large-scale projects where ample power, clean operation, and consistent results are essential.

A rugged, 3/8" plate steel frame, top-tier belt drive, and spring-assisted adjustable swing weights grant operators rapid setup, flexible head pressure, and robust machine balance on any surface. The built-in 12.5-gallon water tank and 3" vacuum port enable optimal dust suppression and wet operation, supporting OSHA-compliance and excellent site cleanliness regardless of the task or work environment.

Technical Specifications

Standout Benefits & Performance

• Big Job Productivity: The 30-inch working width, paired with full-coverage triple-head planetary movement, lets the P800E process large floor areas quickly, delivering professional results in malls, warehouses, stadiums, and big-box retail spaces.

• Electric Power Advantage: Silent, zero-emission 460V operation is ideal for indoor and sensitive environments—a must for medical, food, hospitality, and active-building work.

• Belt-Driven Reliability: Durable, low-vibration, and serviceable belt drive ensures smooth operation, less operator fatigue, and straightforward maintenance compared to gear-driven competitors.

• Full Operator Control: Spring-assisted weight system offers instant head pressure changes to switch between aggressive removal and fine polishing; forward/reverse controls add to versatility.

• Superior Dust & Slurry Management: Spacious 12.5-gallon tank aids with wet grinding and dust suppression; 3-inch vacuum port ensures compatibility with premium HEPA dust collectors for OSHA-Dust compliance and fast, clean jobsite turnover.

• Pro-Grade Features: LED lights (front/rear), tool-free handle adjustment, built-in lift points, tie-downs, and heavy transport wheels optimize setup, handling, and safety.

Applications & Recommended Use

• Large Scale Concrete Polishing: Airports, shopping centers, convention halls, factory floors, and event venues.

• High-Production Surface Prep: Removes coatings, glues, epoxy, paint, and carpet mastic uniformly for overlay, paint, or decorative finishes.

• Commercial Restoration Projects: Revitalizes old, uneven concrete, terrazzo, or stone flooring to a premium architectural finish.

• Industrial Cleaning & Leveling: Used in logistics facilities and manufacturing plants for essential safety surface prep or slip mitigation.

• Wet or Dry Grinding: Supports both methods with dedicated water supply and dust skirt—choose the best process for substrate, location, and safety plan.

User & Industry Reviews

• Contractor-Tested: Users praise its massive grinding area, smooth running, and consistent surface finish on even the largest jobs.

• Low Noise & Emissions: Electric-powered operation is favored for night, medical, multi-use, and sensitive environments.

• Easy Daily Operation: Tool-free controls, quick inspection windows, and resettable handle/weight positions minimize labor and learning curve.

• Impressive Uptime: Heavy-duty steel construction and robust components stand up to rental, high-use, and aggressive job conditions.

Maintenance & Best Practices

• Inspect belts monthly for wear or misalignment; lubricate bearings as needed.

• Clean water tank and dust skirt after each wet job to maintain optimal vacuum and slurry management.

• Check power supply compatibility and cords before setup; confirm all electrical safety protocols per local codes.

• Rotate or replace diamond segments and inspect plates after large or aggressive jobs.

Frequently Asked Questions

Q: Can the P800E run on other voltages?
A: This model is wired for 460V, three-phase; check with Bartell for optional 230V models or step-down transformer solutions.

Q: What tooling does it use?

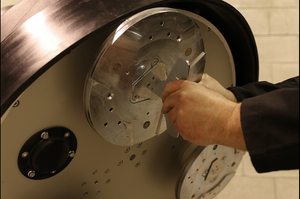

A: Compatible with Bartell’s SlideMAG system for rapid segment changes and other industry-standard magnetic plates.

Q: Is it suitable for 24/7, high-output jobs?
A: Yes—the P800E is designed for continuous, contractor-grade operation with fast cool-down and efficient controls.
