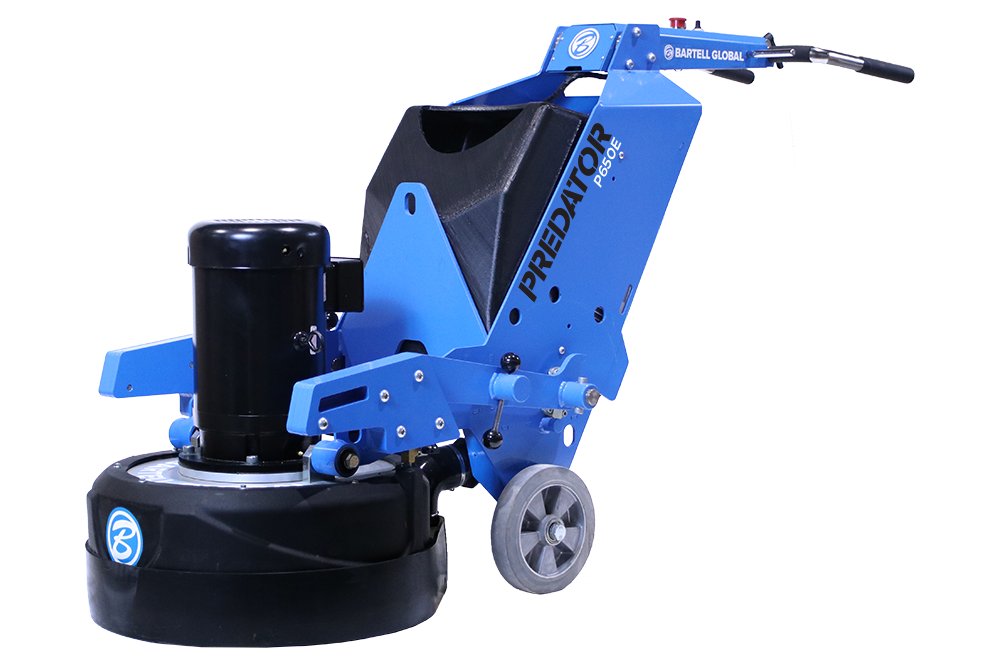

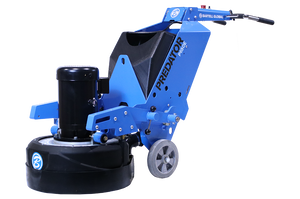

Bartell Global - Predator P650E - 3 Headed Planetary, 220V, Single Phase 98-0056
Features
- 26 inch diameter (650 mm)
- Precision balanced 3-head planetary design
- Heavy-duty steel frame
- Easy height adjustment handle
- Assortment of tooling available
- Easy on-site maintenance or repair with standard tools

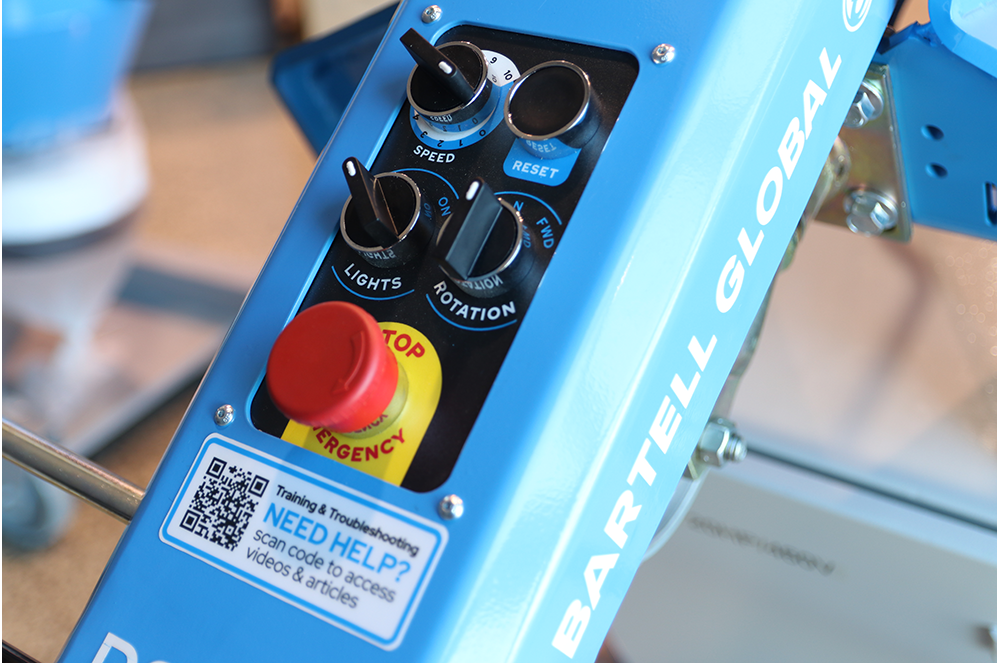

- Variable speed control
- Forward/reverse grinding
- Integrated water tank

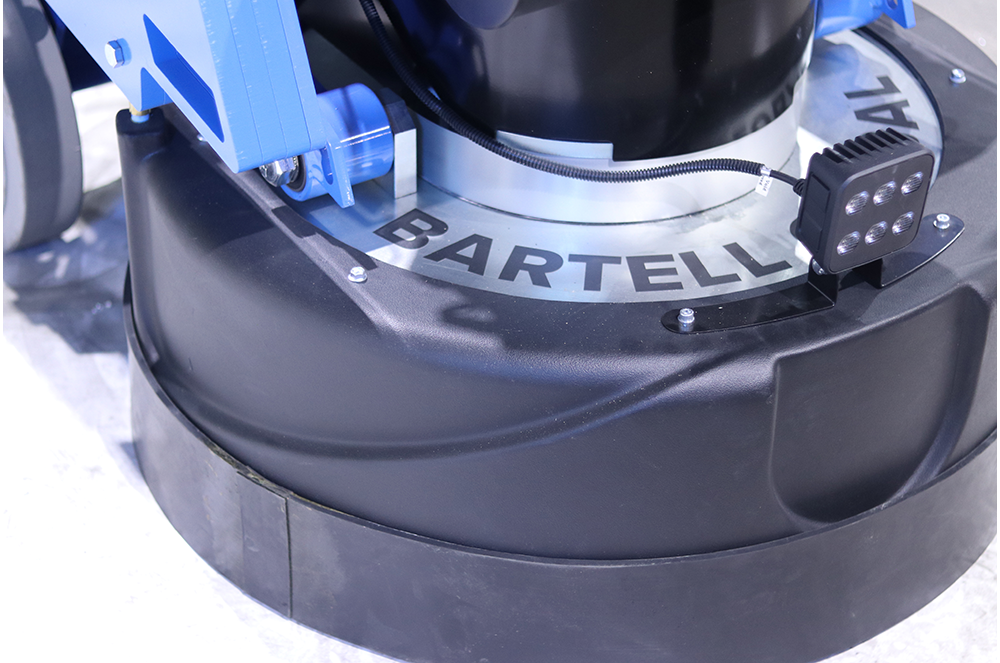

- Bright LED work light included

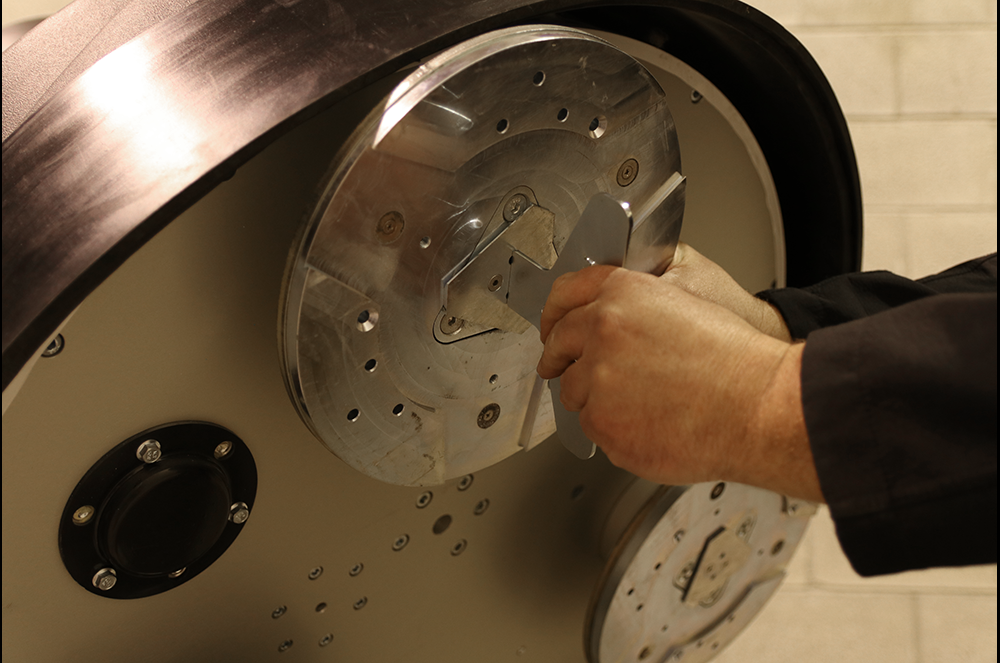

- Convenient Slide-Mag or standard 3-hole-bolted tooling plates
- Additional weight included (77lbs/35kg)
- Adjustable dust skirt for effective dust control
- Integrated lift points
Â
Specifications
| MODEL | P650Y | |
| Motor / Engine | 220V, Single-Phase | 220V 3-Phase |
| AMPS | 26A | 31A |
| Power Output | 7.5hp (7.5kW) | 10hp (7.5kW) |
| Power Frequency | 60Hz | |
| Twist Lock Plug | 50A, CS8265C | |
| Motor/Engine RPM | 0 – 1800 | |
| Grinding Head RPM | 0 – 1800 | |
| Planetary Plate RPM | 0 – 350 | |
| Grinding Width | 25.7" (65cm) | |
| Head Diameter | 9.8" (25cm) | |
| Length | 38.2" (97cm) | |
| Width | 25.7" (65cm) | |
| Height | 37.4 (95cm) | |
| Weight | 660 lbs (300kg) | |
