Barreto 2324RTKH: Honda GX690 - TRACK TRENCHER
Barreto 2324RTKH: Honda GX690 - TRACK TRENCHER
Barreto 2324RTKH: Honda GX690 - TRACK TRENCHER

Barreto 2324RTKH: Honda GX690 - TRACK TRENCHER

SKU: E2324RTKH-4
$26,354.00
$26,354.00
Shipping calculated at checkout.

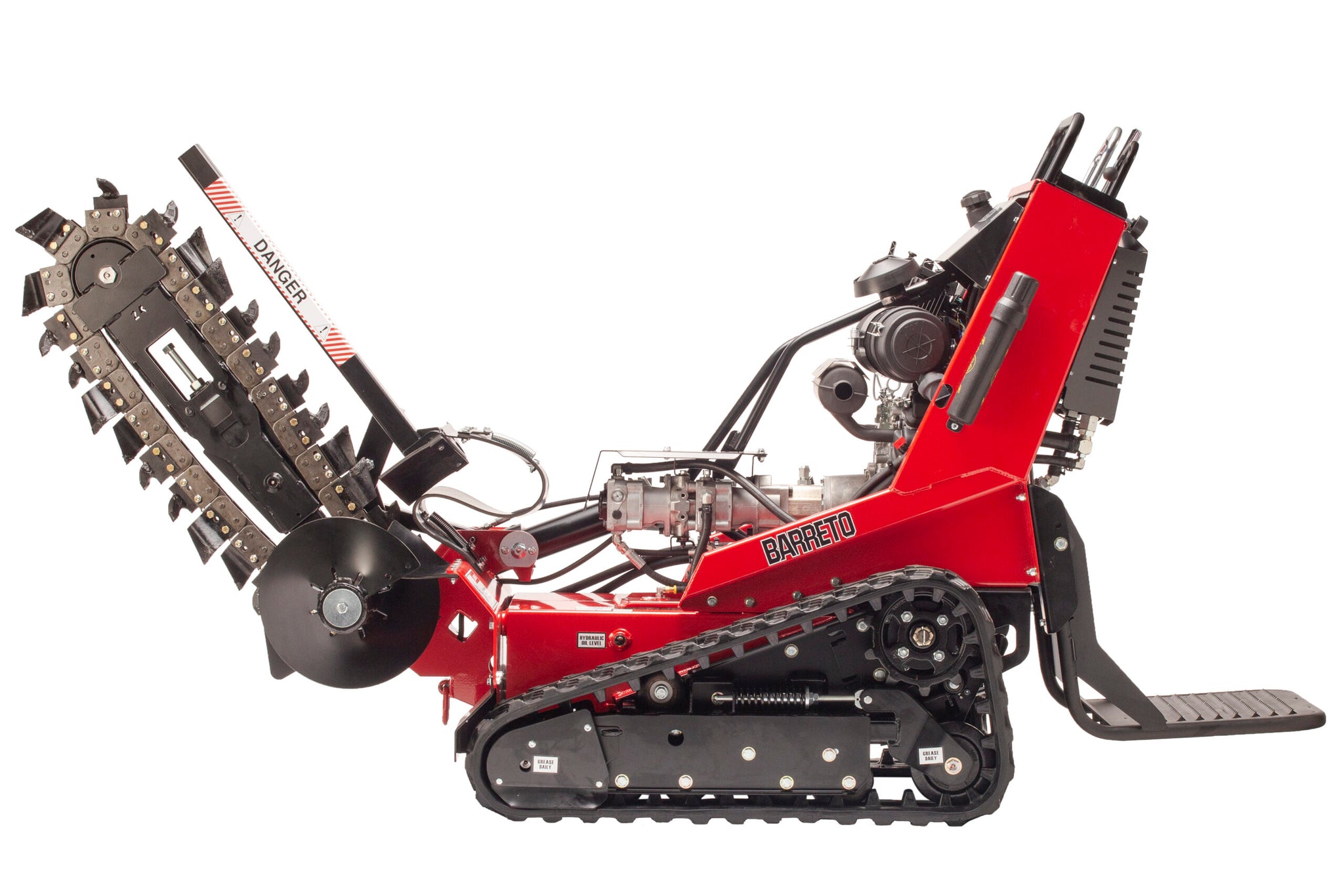

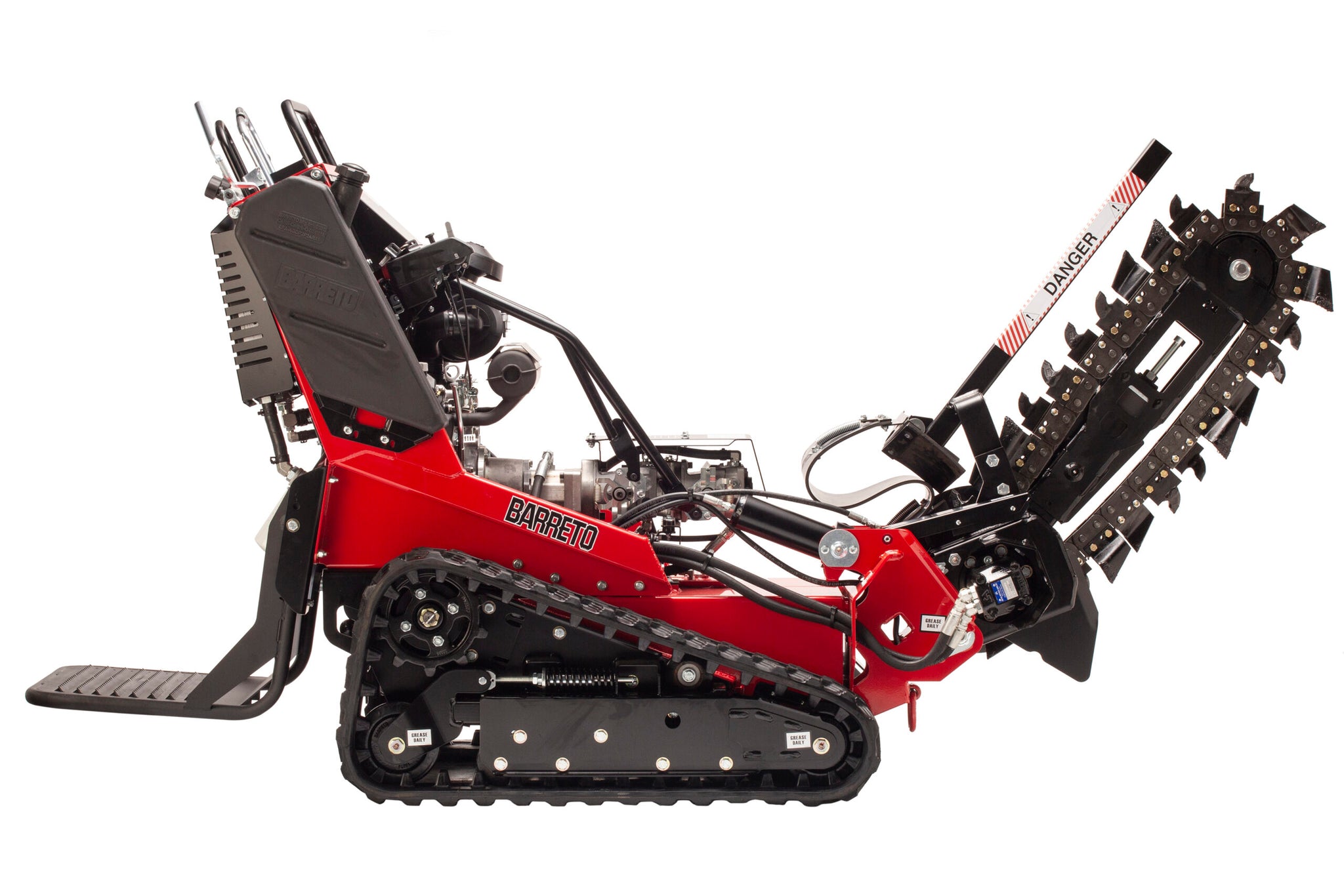

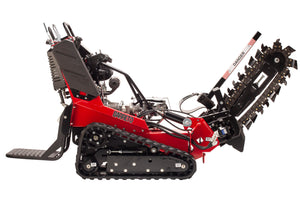

Barreto 2324RTKH: Honda GX690 - TRACK TRENCHER

WHY BARRETO?

DESIGN
With a fixed operator platform and engine options of 20 or 23hp, the RTK Stand-on Track Trencher attacks the ground and the job with the power to meet the challenge. Trenching up to 48” deep and 6” wide, these trenchers will take on anything that is thrown at them. The RTK trenchers feature a 7.1” wide track that creates 241 square inches of footprint on each side of the machine. This gives outstanding traction on wet soil, clay, sand, or steep terrain while softening the impact on any existing landscaping. The track absorbs most of the impact caused by rocks, roots, or other obstructions in the soil. The RTK features a weight advantage that improves traction, reduces impact on the operator, and provides stability. All models feature electric start.

CONTROLS

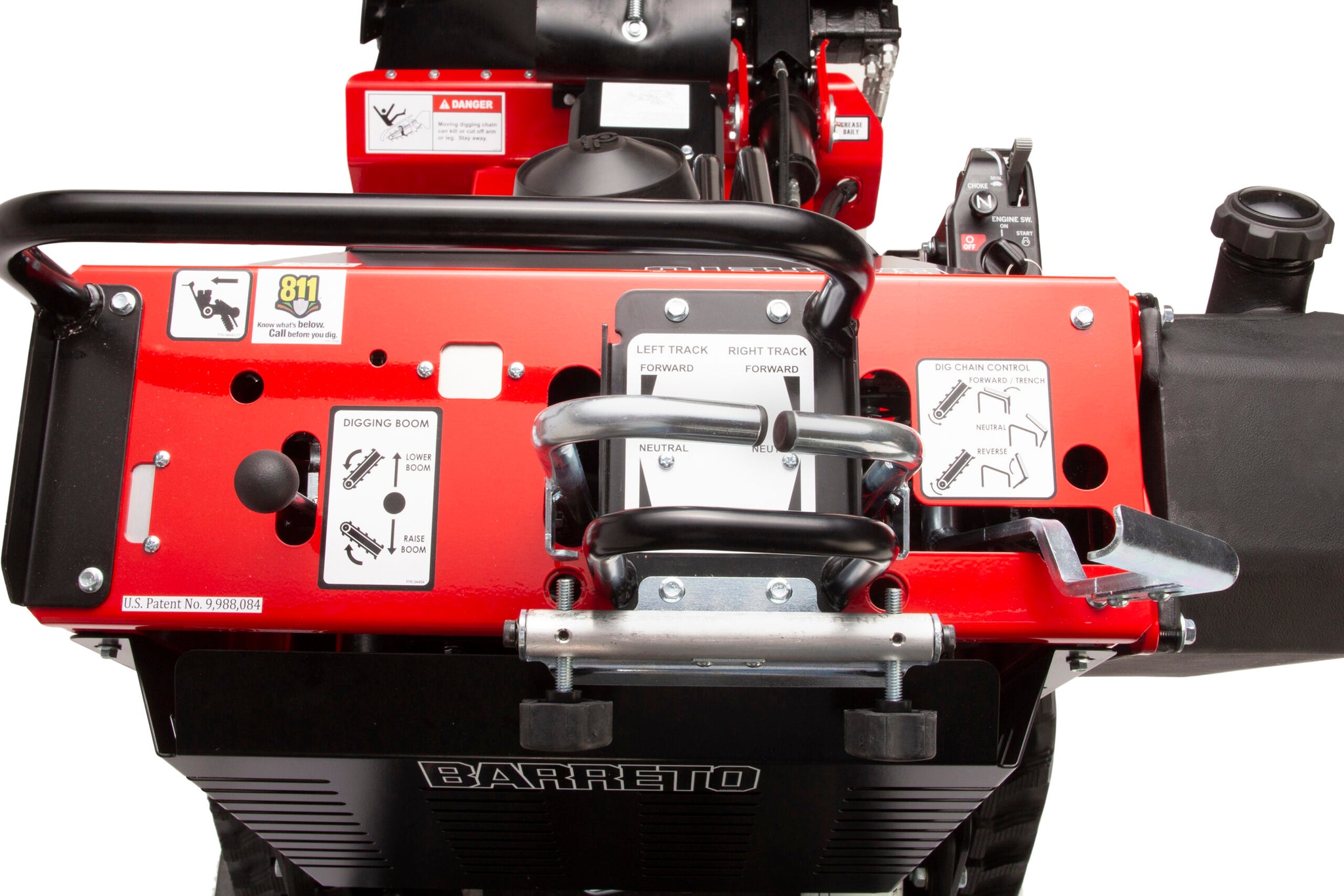

The RTK features unique fine-tuning control adjustment that uses rod linkage instead of cables. The new Adjustable Trenching Control (ATC) can be positioned to modify the trenching speed of the tracks individually while on the go. By utilizing the individual track controls, the operator has the ability to keep their trench straight when working on uneven terrain.

ROI
Low maintenance and hardworking, the RTK trencher is reliable in the most difficult conditions. The simple steering, large tracks, and size of this trencher make the operator’s job simple and keeps customer satisfaction high. With accessible yet protected components, maintenance costs are minimal.

 U.S. Patent No. 9,988,084

FEATURES

  • Boom tension can be easily adjusted when needed

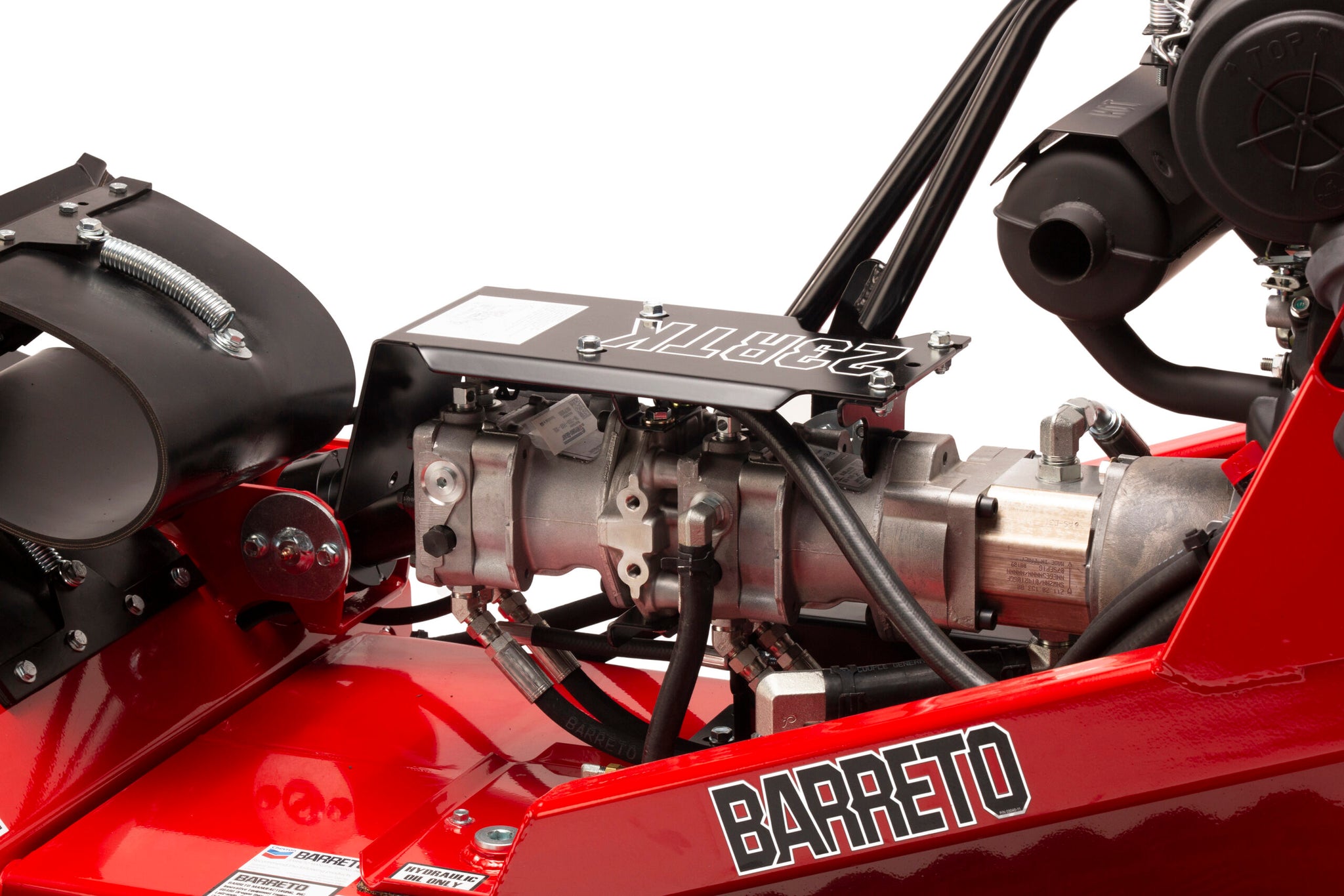

  • Quick access to all of the hydraulics for easy maintenance and repair
  • Adjustable Trenching Controls (ATC) use rod linkage instead of cables

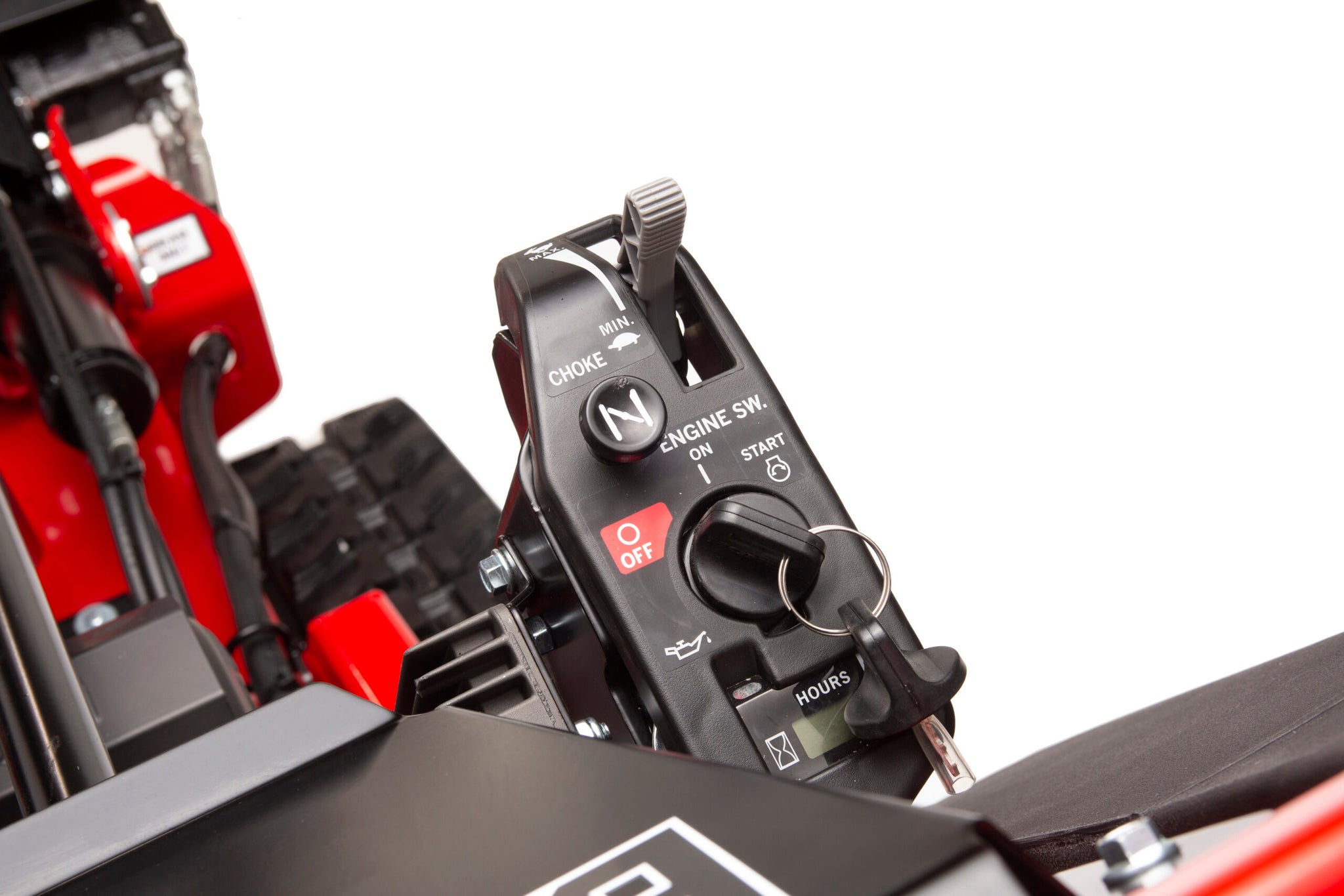

  • Standard electric start on all models

SPECIFICATIONS

ENGINE:
2324RTKH: Honda GX690

DETAILS:
Weight: 1,690 lbs.
Height: 56.2″
Length: 108″
Width: 35.5″
Track Width: 7.1″
Total Ground Contact: 470 sq. in.
Hydraulic Reservoir: 14 gallons
Ground Drive Forward: 210 ft/min
Ground Drive Reverse: 90 ft/min
Digging Chain Speed:  270 ft/min
Boom Depth Options: 24, 30, 36, 42, or 48″ (48″ only available on 23RTK models)
Chain Width Options: 4 or 6″



Barreto 2324RTKH: Honda GX690 - TRACK TRENCHER

Unmatched Power, Durability, and Precision for Demanding Trenching Jobs

When you’re investing in trenching equipment, you don’t just need power—you need reliability, maneuverability, and durability built for the harshest jobsite conditions. The Barreto 2324RTKH: Honda GX690 - TRACK TRENCHER delivers exactly that, combining robust engineering with the legendary performance of the Honda GX690 engine. This trencher isn’t just a machine—it’s a proven jobsite partner trusted by professionals across landscaping, construction, utilities, and rental fleets.

We will cover why the Barreto 2324RTKH: Honda GX690 - TRACK TRENCHER stands out, its key features and specs, real-world benefits, maintenance tips, and why it should be the next addition to your fleet.

What is the Barreto 2324RTKH: Honda GX690 - TRACK TRENCHER?

The Barreto 2324RTKH is a commercial-grade, stand-on track trencher powered by the Honda GX690, a 22 HP V-twin engine renowned for exceptional torque and smooth operation. Built by Barreto—a name respected in the trenching industry for rugged, American-made equipment—the 2324RTKH is designed to dig precise trenches quickly, even in rocky, clay, or compacted soils.

Its track system, intuitive hydraulic controls, and robust construction make it a top pick for contractors and rental businesses seeking performance and low maintenance.

Key Features & Specifications

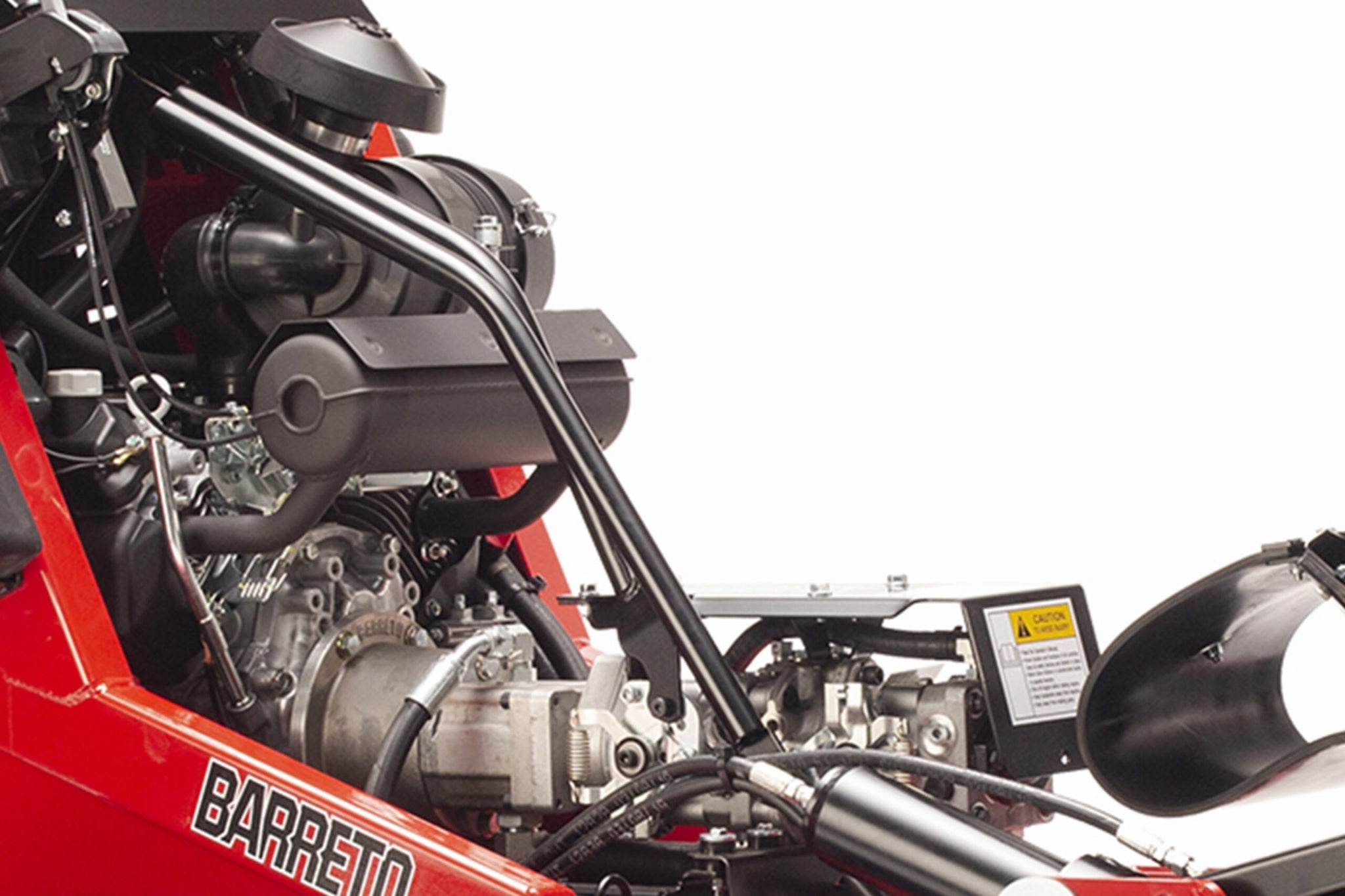

Honda GX690 V-Twin Engine

  • Horsepower: Approximately 22 HP.

  • Liquid-cooled and air intake system: Keeps the machine running cool on long jobs.

  • Low vibration and quiet operation: Improves operator comfort.

  • Reliable torque: Keeps the chain moving steadily through tough soil.

The Honda GX690 is known for commercial durability, low fuel consumption, and proven field performance.

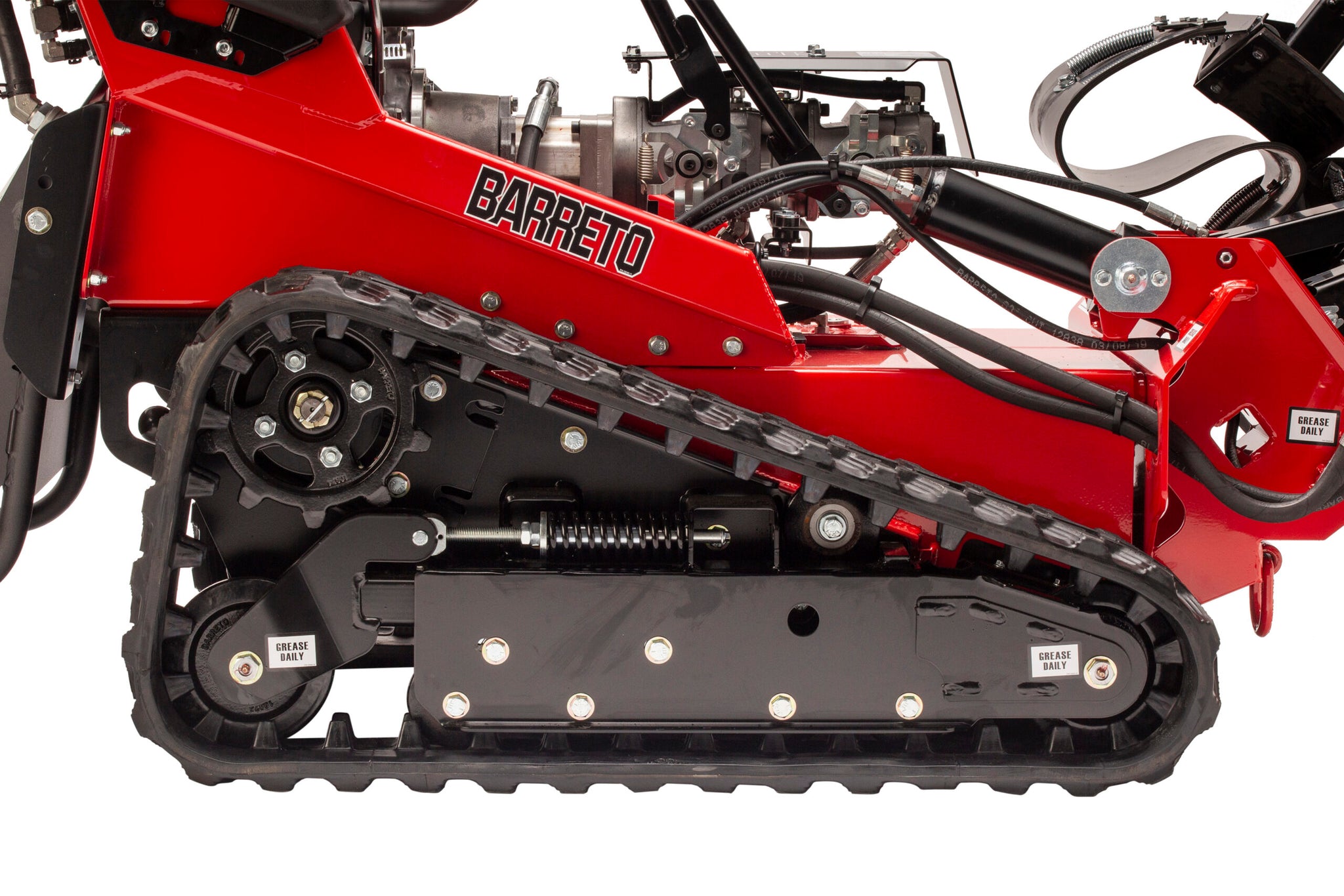

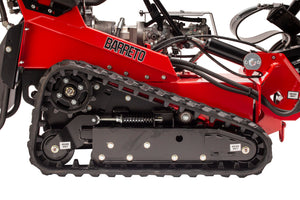

Track System

Instead of wheels, the Barreto 2324RTKH uses heavy-duty rubber tracks:

  • Better traction: Excellent on muddy, sandy, or uneven surfaces.

  • Low ground pressure: Reduces turf damage, ideal for landscaping projects.

  • Enhanced stability: Keeps the machine balanced on slopes or rugged ground.

This makes it a perfect choice when working on soft lawns, loose soils, or uneven terrain.

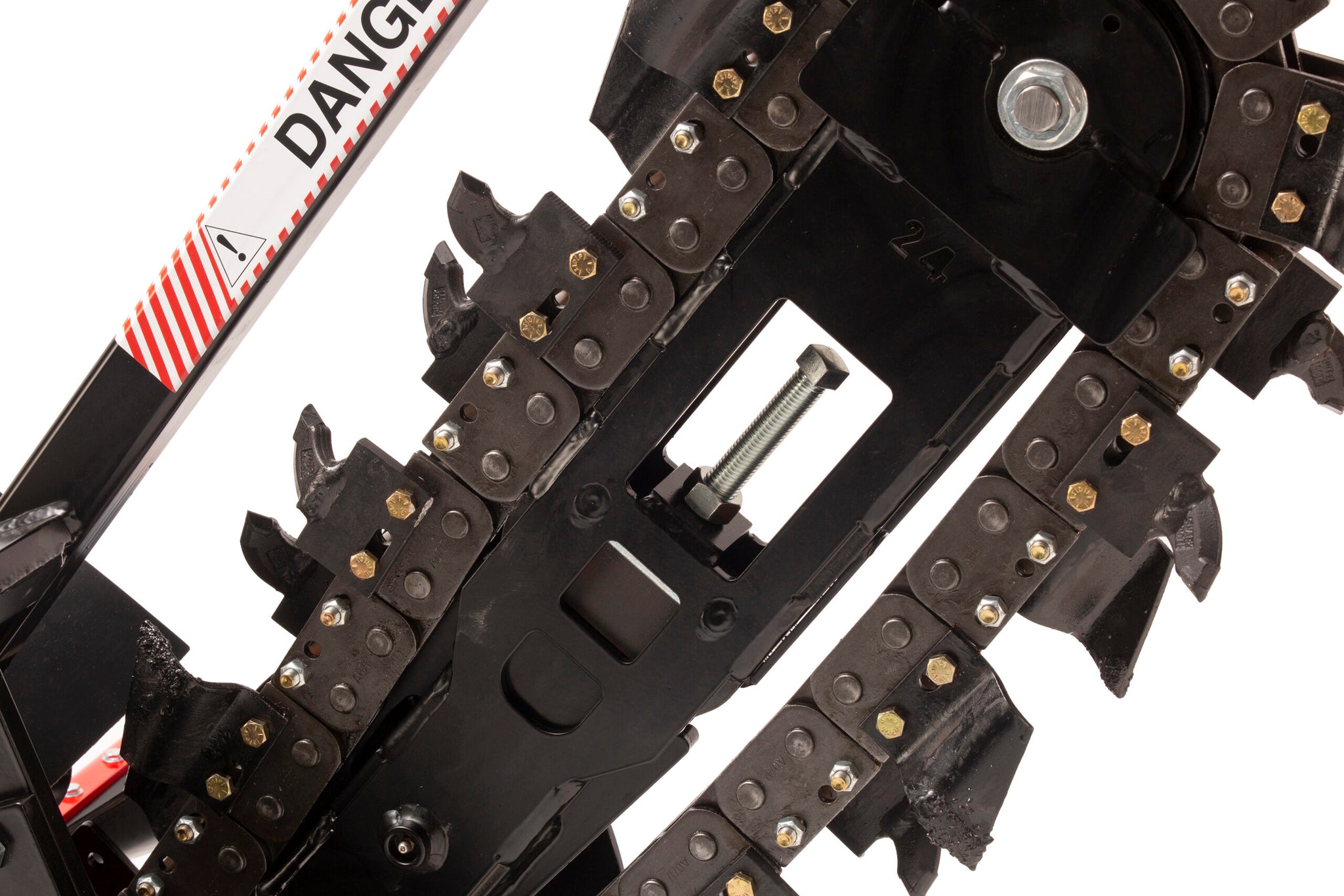

Trenching Boom & Chain

  • Typical trench depth: Up to 24 inches.

  • Cutting width: Usually 4–6 inches depending on the chain.

  • Hardened teeth and durable chain reduce wear and maintenance costs.

  • Smooth hydraulic system keeps trenching consistent and reduces operator fatigue.

Hydraulic Control System

  • Simple levers and joystick controls.

  • Precise speed and depth adjustments.

  • Low learning curve: perfect for rental businesses.

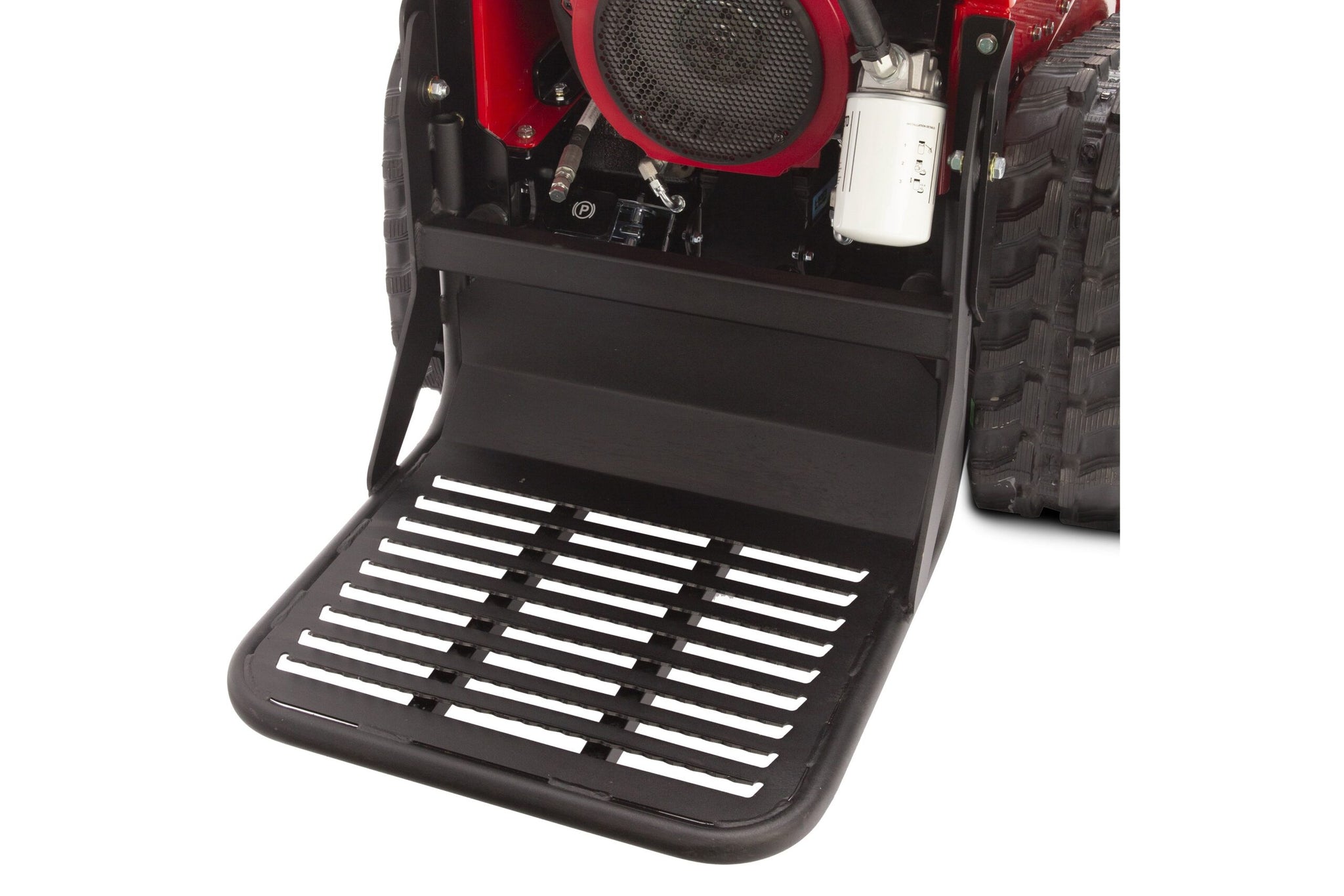

Compact, Stand-On Design

  • Easier to see trench line.

  • Fast on/off for repositioning.

  • Reduces operator fatigue during long jobs.

Real-World Benefits of the Barreto 2324RTKH: Honda GX690 - TRACK TRENCHER

The Barreto 2324RTKH isn’t just a list of specs—it solves real jobsite challenges:

Consistent Power in All Conditions

The Honda GX690 engine maintains steady trenching, whether you’re in clay, sand, or rocky soil.

Reduced Ground Damage

Tracks spread the machine’s weight, minimizing ruts and preserving client lawns—a big selling point for landscapers.

Easy to Use

Operators, even those new to trenchers, can quickly learn to dig straight, clean trenches.

Built to Last

Heavy-gauge steel frame, sealed pivot points, and quality hydraulics keep downtime and repair costs low.

Versatile Applications

Ideal for:

  • Irrigation system installation.

  • Electrical conduit.

  • Fiber optic and data lines.

  • French drains and drainage systems.

Why Choose a Track Trencher Over a Wheeled Trencher?

The difference comes down to productivity and jobsite flexibility:

  • Tracks perform better on slopes, loose or wet soil, and soft lawns.

  • Tracks reduce turf damage and surface compaction.

  • Tracks provide better stability when digging deep trenches.

For contractors or rental centers covering a variety of soil types, tracks make the Barreto 2324RTKH more versatile and user-friendly.

Durability & Maintenance: Built for Long-Term Use

The Barreto 2324RTKH: Honda GX690 - TRACK TRENCHER is built to withstand daily commercial use:

  • High-quality welds and steel: Resist wear and impact damage.

  • Protected hydraulic components: Reduce risk of leaks or contamination.

  • Sealed pivot points: Block out dirt and moisture, lowering long-term maintenance costs.

Proper maintenance keeps it running like new:

  • Regular oil changes following Honda GX690 guidelines.

  • Daily visual checks for hydraulic leaks, chain tension, and track wear.

  • Greasing moving parts as recommended.

  • Cleaning after use: Removes dirt from chain and track systems to prevent accelerated wear.

Operator Tips for Best Results

To get the most from your Barreto 2324RTKH, consider these tips:

  • Start slow: Let new operators practice on level ground first.

  • Check trench depth and width frequently: Maintain consistent results.

  • Keep chain sharp: Replace or rotate teeth as needed.

  • Use lower chain speeds in tough soils: Helps reduce vibration and improve cut quality.

  • Avoid turning while trenching: Keeps trenches straight and reduces track wear.

These small steps can extend the machine’s life and keep clients happy.

Applications & Industries

The Barreto 2324RTKH fits many jobsite roles:

  • Landscaping: Install irrigation lines and landscape lighting.

  • Construction: Dig trenches for water, gas, or electrical lines.

  • Utilities: Fast installation of fiber optic cables.

  • Drainage contractors: French drains and perimeter drainage.

Rental companies also appreciate its intuitive controls, which make it popular with occasional users.

Why Contractors & Rental Centers Love the Barreto 2324RTKH

  • Quick ROI: High productivity reduces job times.

  • Reliable performance: Less downtime and fewer repairs.

  • Resale value: Barreto machines hold value well.

  • Low training time: Get new staff up to speed fast.

  • Trusted Honda engine: Easier to find parts and service anywhere in the USA.

Barreto: A Legacy of Quality

Barreto has built trenchers in the USA for over 30 years, earning trust for:

  • High-quality materials and craftsmanship.

  • Machines designed for real jobsite conditions.

  • Innovative design that balances power, control, and comfort.

When you choose the Barreto 2324RTKH, you’re choosing a trencher built by a company that knows contractors’ real needs.

Final Thoughts: Should You Invest in the Barreto 2324RTKH: Honda GX690 - TRACK TRENCHER?

If you need a powerful, reliable, and easy-to-use trencher that handles diverse terrain, the Barreto 2324RTKH: Honda GX690 - TRACK TRENCHER is an investment that pays off:

✅ Trusted Honda GX690 engine for consistent performance.
✅ Tracks for better traction, less turf damage, and superior slope handling.
✅ Stand-on design reduces fatigue and speeds up trenching.
✅ Built tough for daily use by contractors or rental centers.
✅ Simple maintenance and operator-friendly controls.

From landscaping to utilities and beyond, the Barreto 2324RTKH is a machine that works as hard as you do.
