Barreto 2324RTKH: Honda GX690 - TRACK TRENCHER
WHY BARRETO?
DESIGN

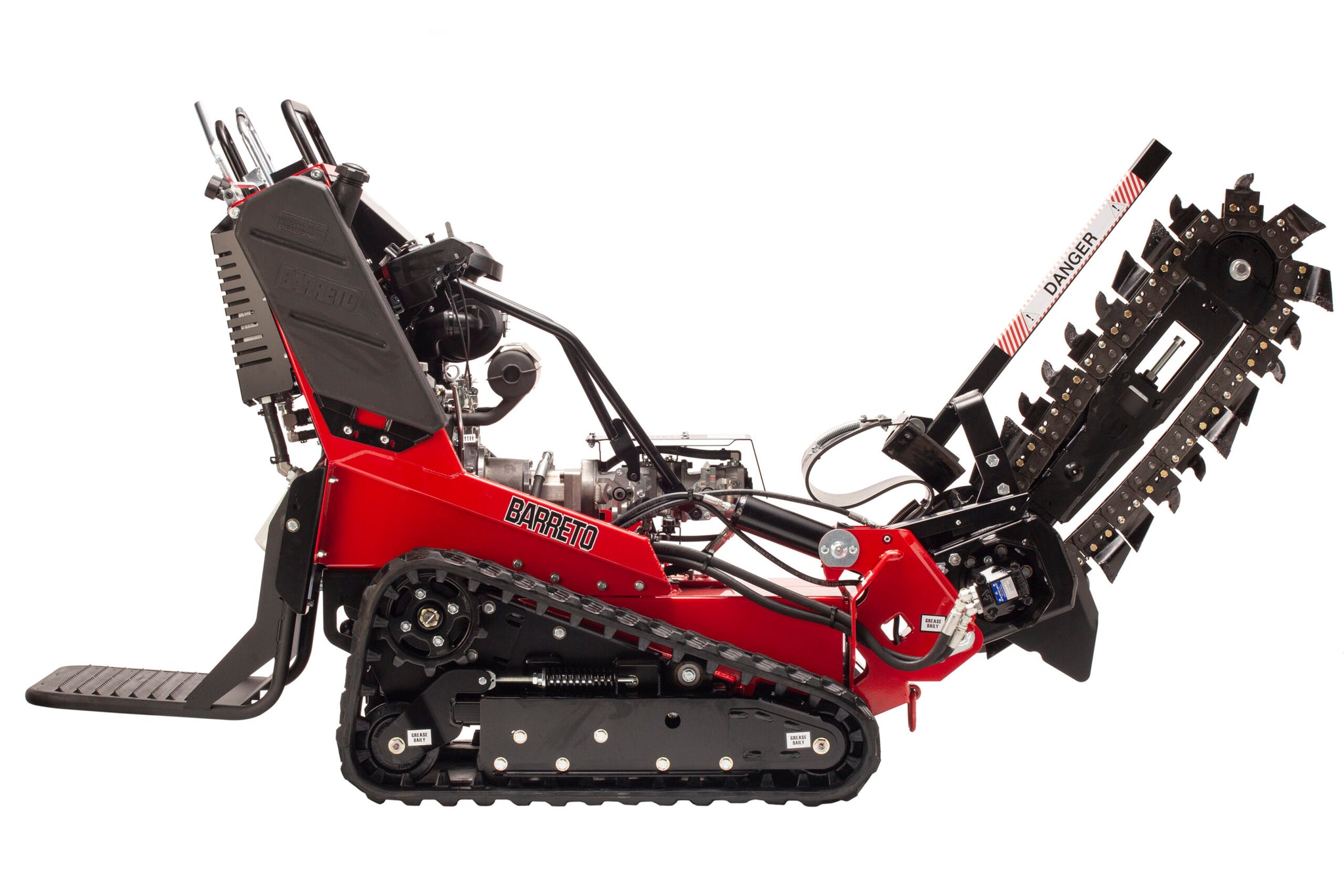

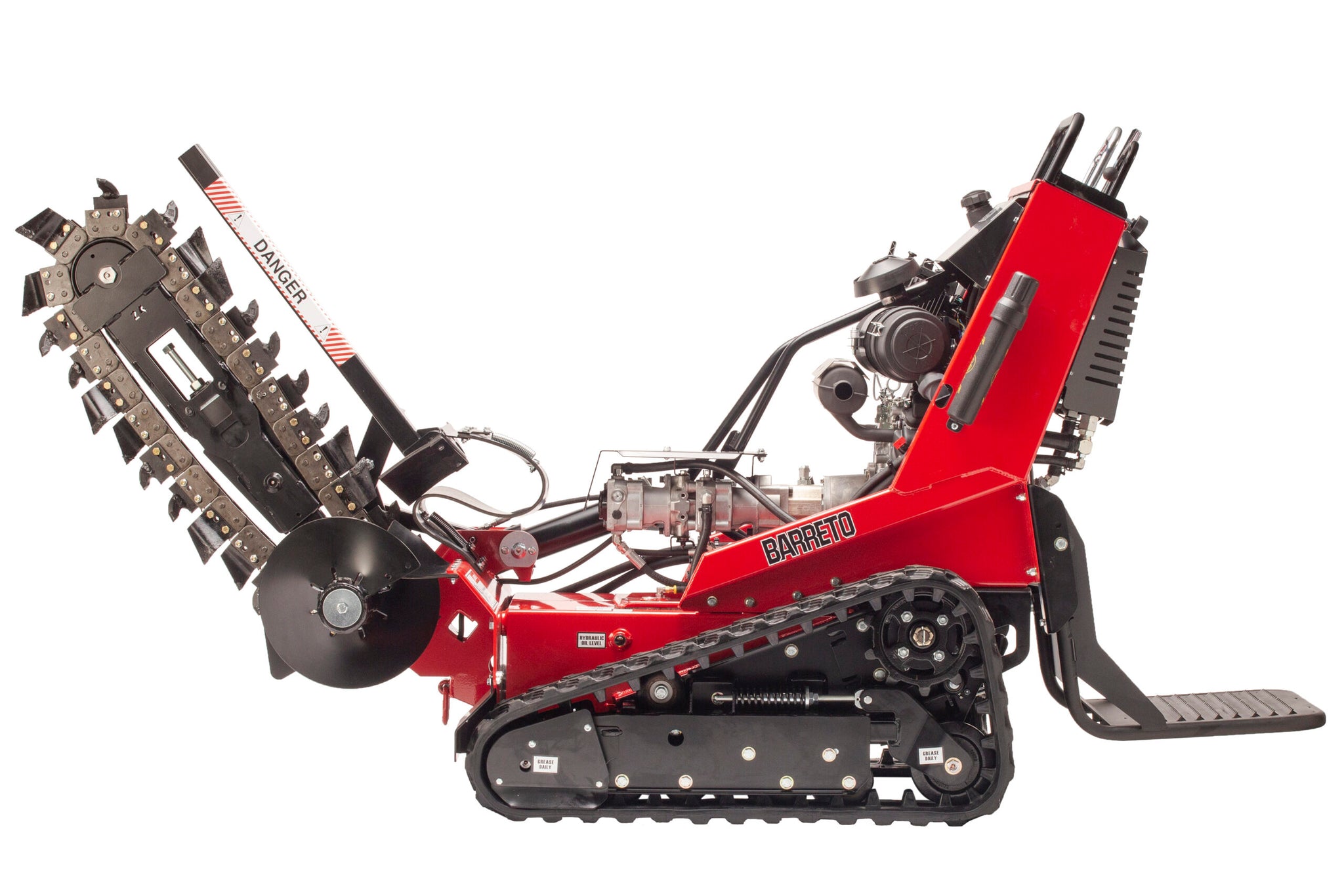

With a fixed operator platform and engine options of 20 or 23hp, the RTK Stand-on Track Trencher attacks the ground and the job with the power to meet the challenge. Trenching up to 48” deep and 6” wide, these trenchers will take on anything that is thrown at them. The RTK trenchers feature a 7.1” wide track that creates 241 square inches of footprint on each side of the machine. This gives outstanding traction on wet soil, clay, sand, or steep terrain while softening the impact on any existing landscaping. The track absorbs most of the impact caused by rocks, roots, or other obstructions in the soil. The RTK features a weight advantage that improves traction, reduces impact on the operator, and provides stability. All models feature electric start.

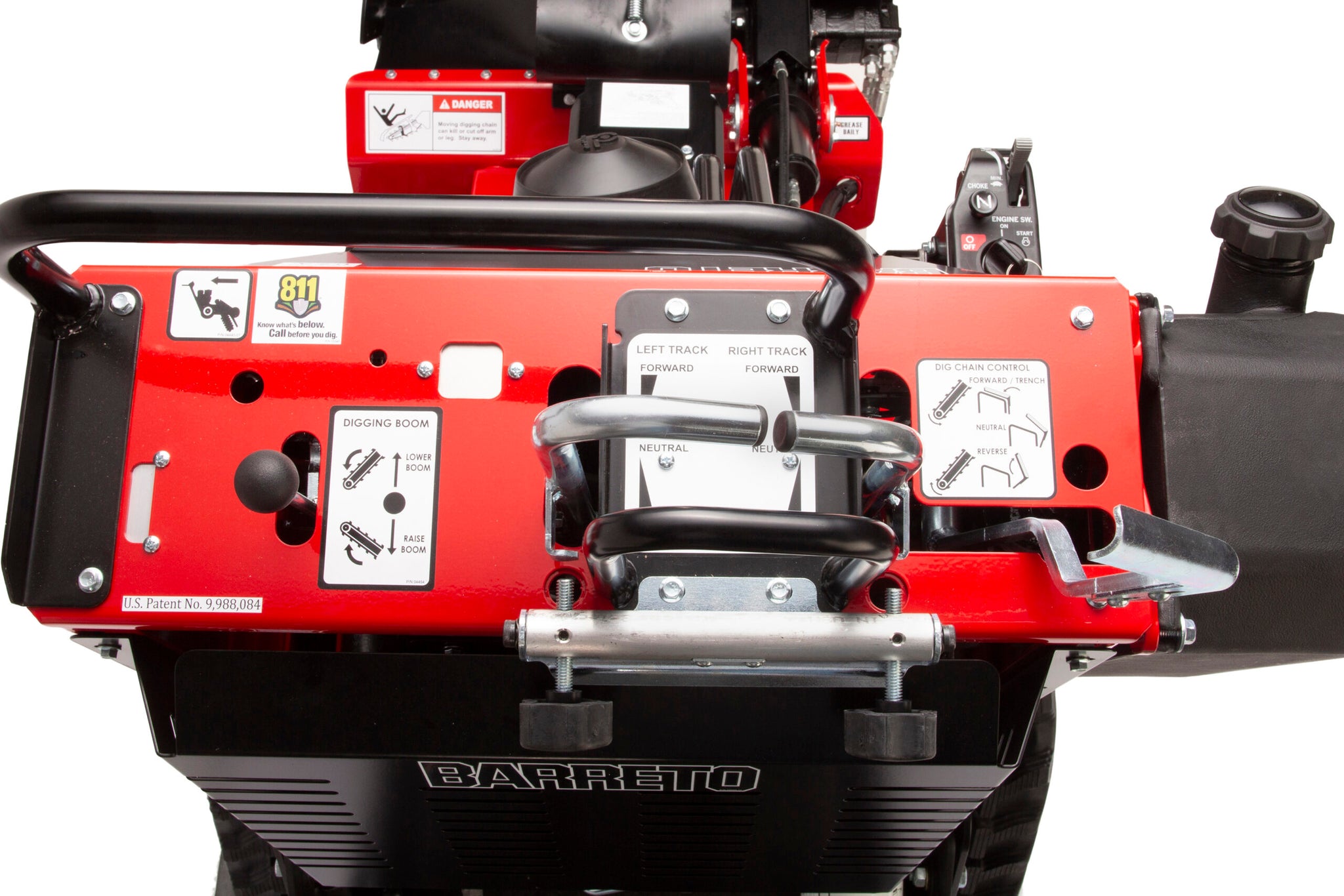

CONTROLS
The RTK features unique fine-tuning control adjustment that uses rod linkage instead of cables. The new Adjustable Trenching Control (ATC) can be positioned to modify the trenching speed of the tracks individually while on the go. By utilizing the individual track controls, the operator has the ability to keep their trench straight when working on uneven terrain.
ROI
Low maintenance and hardworking, the RTK trencher is reliable in the most difficult conditions. The simple steering, large tracks, and size of this trencher make the operator’s job simple and keeps customer satisfaction high. With accessible yet protected components, maintenance costs are minimal.
U.S. Patent No. 9,988,084
FEATURES

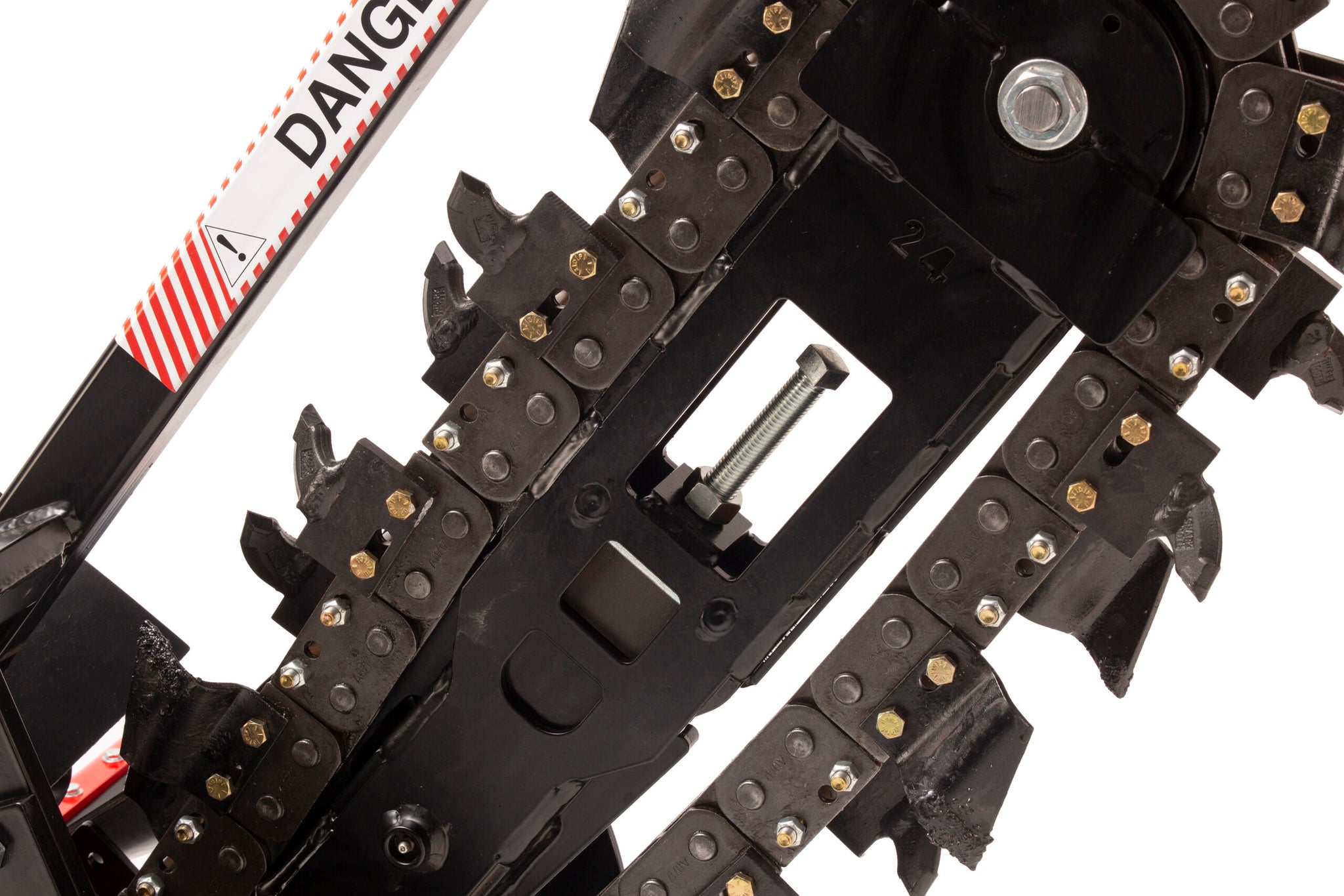

- Boom tension can be easily adjusted when needed

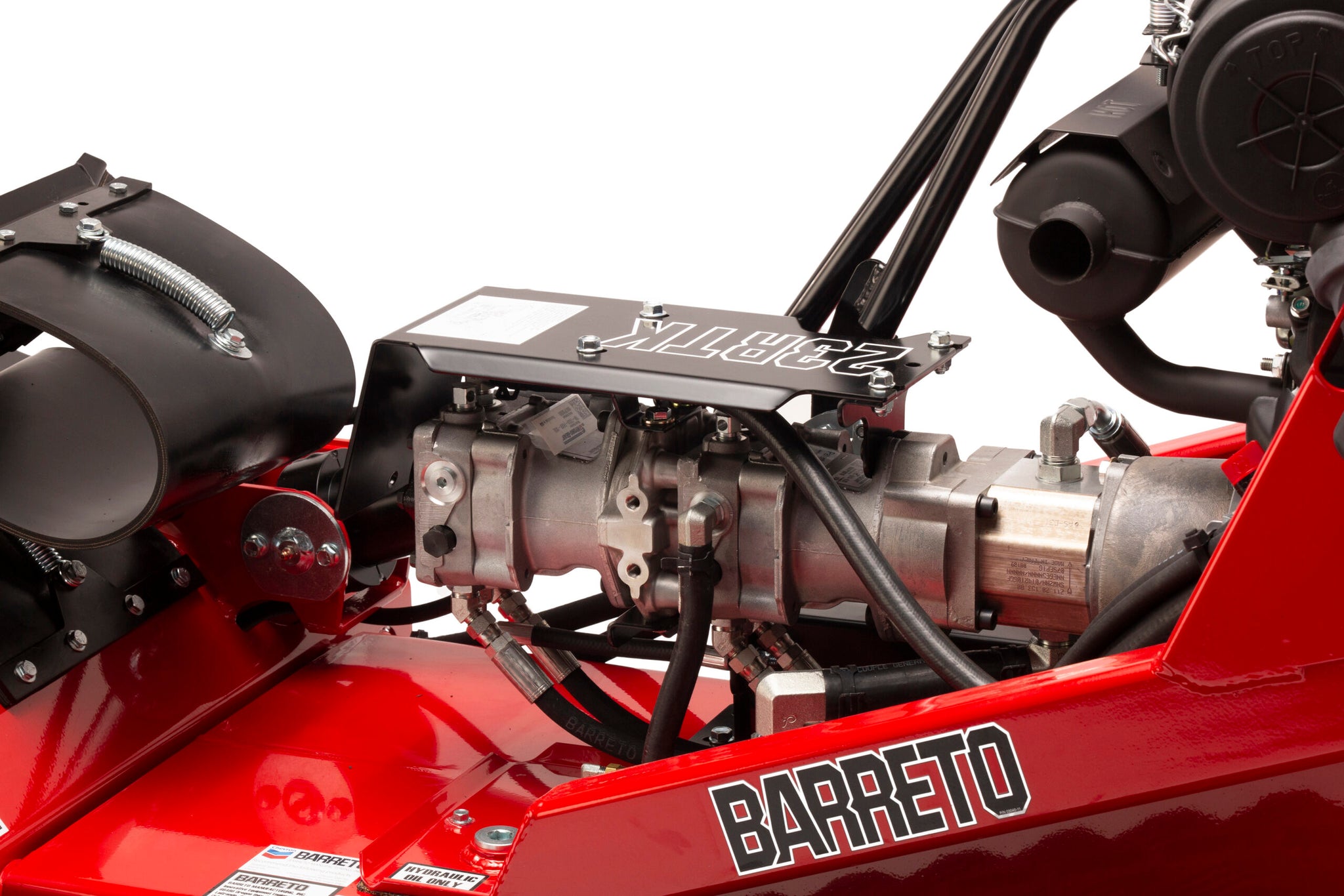

- Quick access to all of the hydraulics for easy maintenance and repair
- Adjustable Trenching Controls (ATC) use rod linkage instead of cables

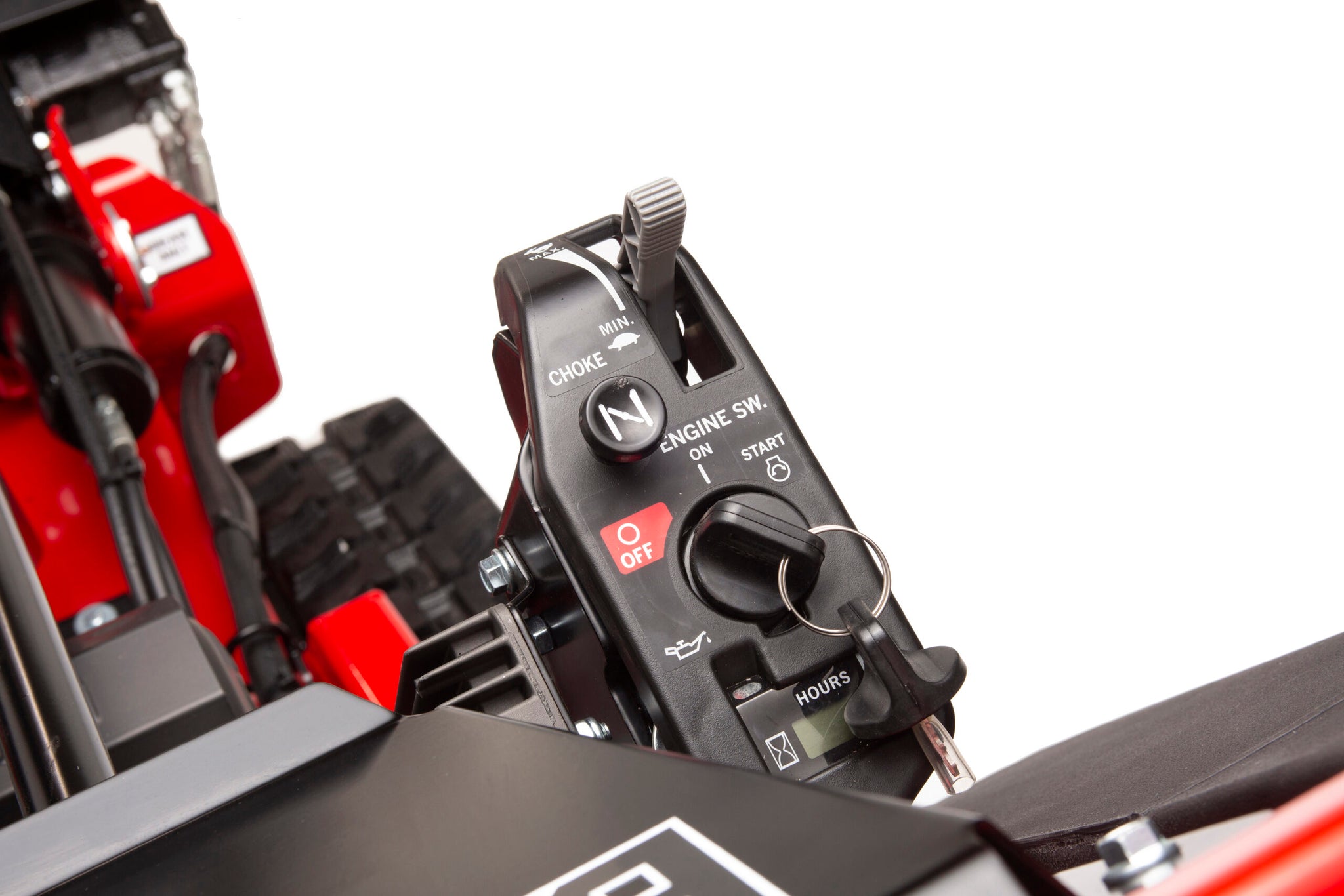

- Standard electric start on all models
SPECIFICATIONS
ENGINE:
2324RTKB: Briggs & Stratton Vanguard V-Twin 23hp
DETAILS:
Weight: 1,690 lbs.
Height: 56.2″
Length: 108″
Width: 35.5″
Track Width: 7.1″
Total Ground Contact: 470 sq. in.
Hydraulic Reservoir: 14 gallons
Ground Drive Forward: 210 ft/min
Ground Drive Reverse: 90 ft/min
Digging Chain Speed: 270 ft/min
Boom Depth Options: 24, 30, 36, 42, or 48″ (48″ only available on 23RTK models)
Chain Width Options: 4 or 6″
Barreto 2324RTKB: Briggs & Stratton Vanguard V-Twin 23hp - TRACK TRENCHER
Power, Performance, and Precision in One Rugged Machine
When it comes to trenching equipment built for serious contractors and rental businesses, the Barreto 2324RTKB: Briggs & Stratton Vanguard V-Twin 23hp - TRACK TRENCHER stands out as a top performer. Designed with durability, operator comfort, and digging power in mind, this track trencher helps you tackle tough soil, varied terrain, and demanding jobs with confidence.
We will cover everything you need to know about the Barreto 2324RTKB: Briggs & Stratton Vanguard V-Twin 23hp - TRACK TRENCHER — from its powerful specifications and features to why it's trusted by professionals nationwide. Whether you're an experienced contractor, equipment dealer, or looking to expand your fleet, this guide will help you understand what makes the 2324RTKB such a standout choice.
What is the Barreto 2324RTKB: Briggs & Stratton Vanguard V-Twin 23hp - TRACK TRENCHER?
The Barreto 2324RTKB is a rugged, stand-on track trencher engineered for both precision and power. It features a Briggs & Stratton Vanguard V-Twin 23hp engine, giving operators reliable horsepower to cut clean trenches efficiently in clay, rocky soils, and challenging conditions.
As part of Barreto’s respected RTKB track trencher lineup, this model combines heavy-duty components, operator-friendly controls, and advanced hydraulic systems. Together, these features deliver a machine built to perform day after day, even on the toughest jobsites.
Key Features & Specifications

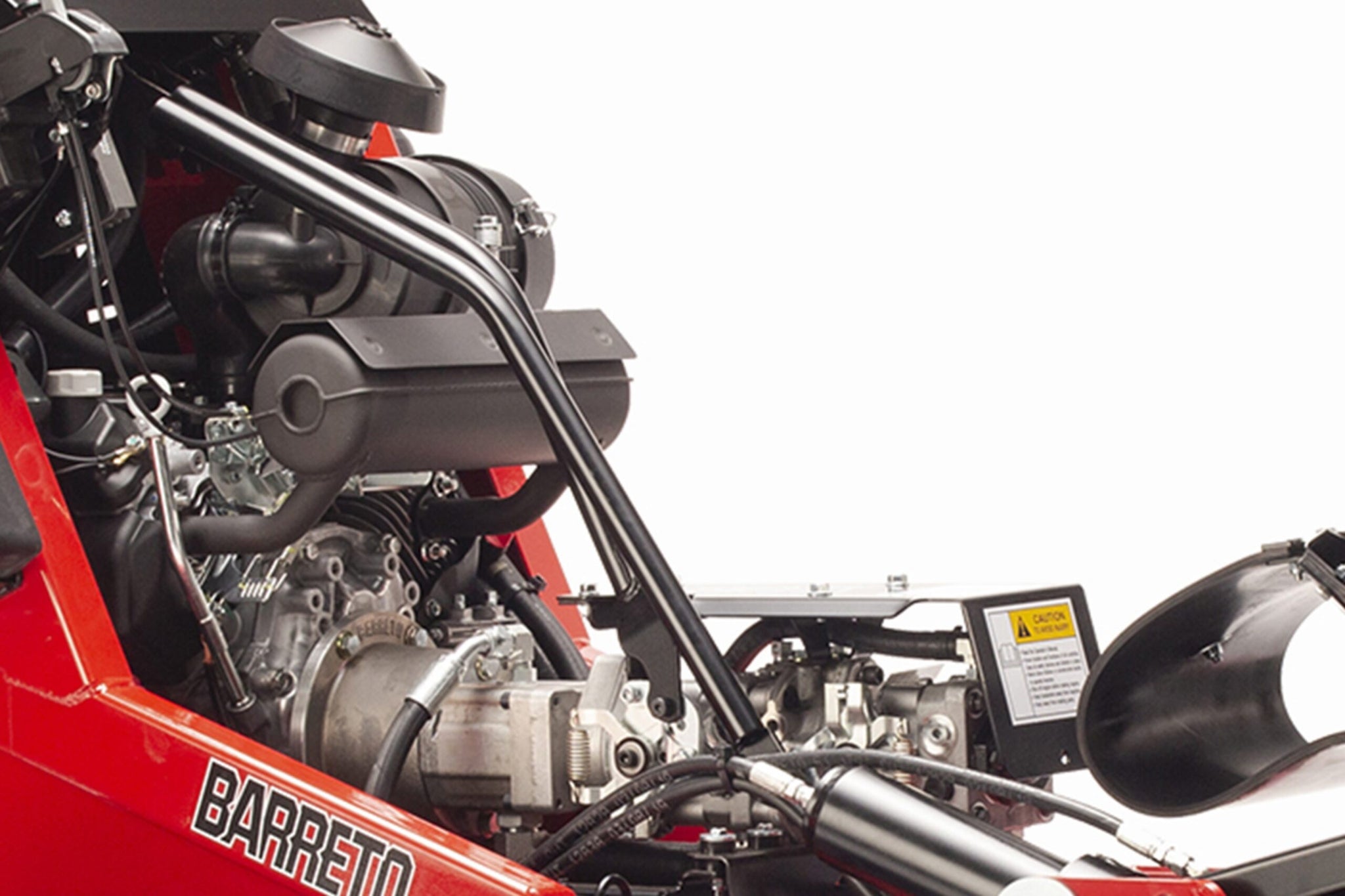

Powerful Briggs & Stratton Vanguard V-Twin 23hp Engine
The heart of the Barreto 2324RTKB is its 23hp Vanguard V-Twin engine. Known for durability and smooth operation, this engine:
-
Provides reliable torque and horsepower.
-
Handles variable soil conditions without bogging down.
-
Features overhead valve design for improved efficiency and performance.
-
Designed for commercial use, ensuring longer lifespan and easier maintenance.

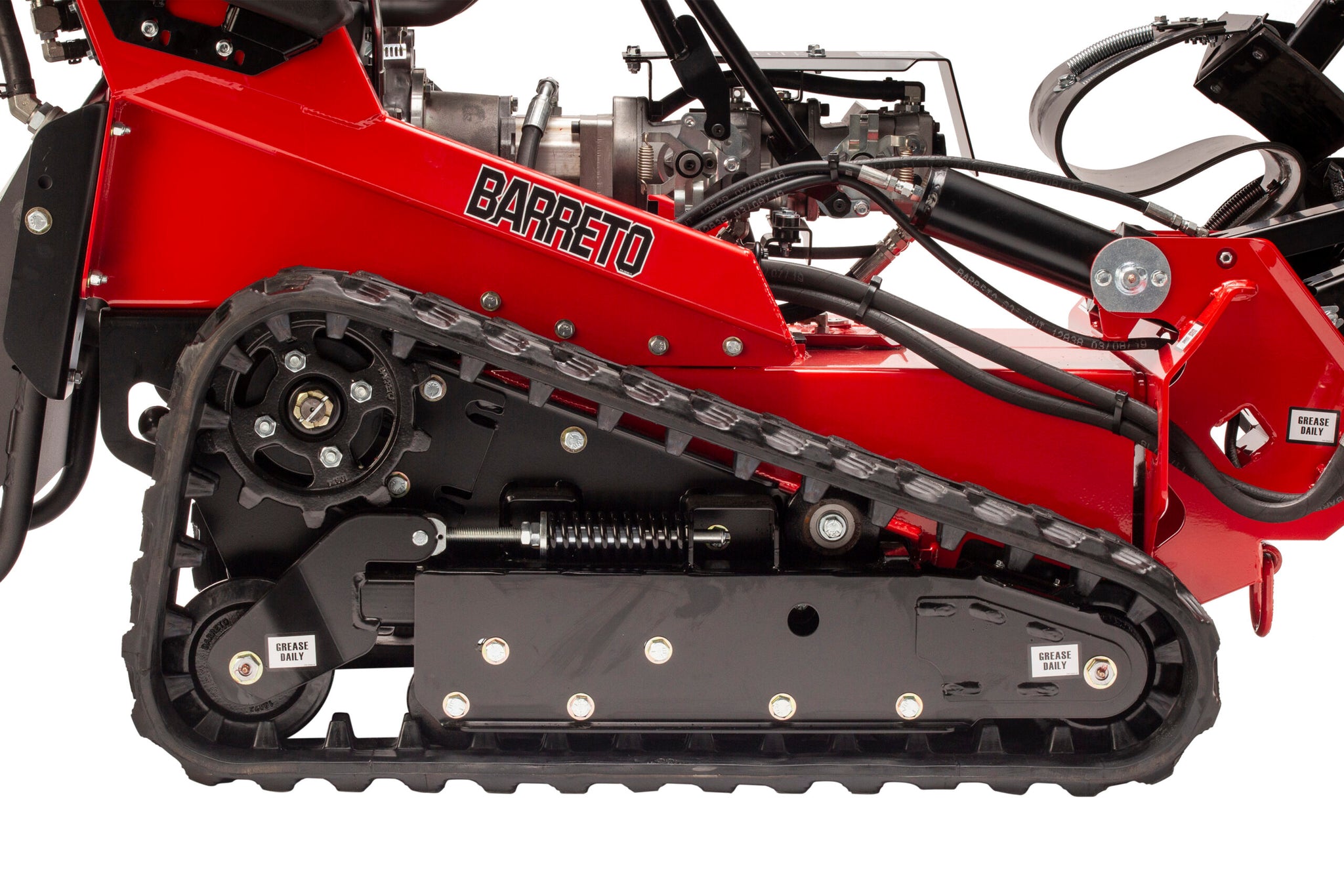

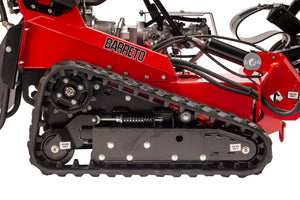

Heavy-Duty Track System
Instead of wheels, the 2324RTKB uses durable rubber tracks, giving it:
-
Better traction on soft, uneven, or wet ground.
-
Lower ground pressure to reduce turf damage.
-
Stability on slopes and rough terrain.
This track system makes it perfect for landscaping, utility installation, and other applications where mobility and minimal ground disruption matter.

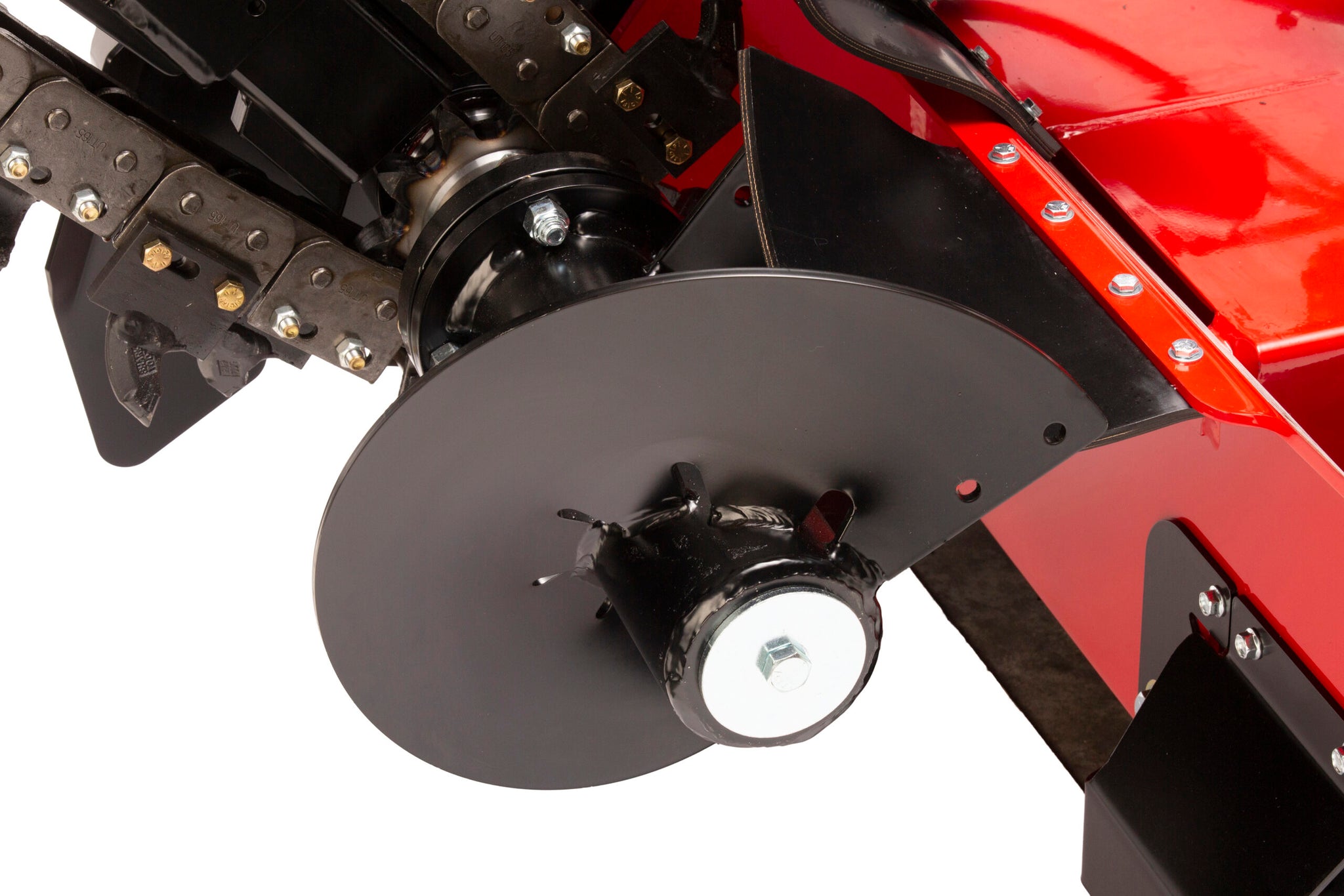

Precision Trenching Boom
The Barreto 2324RTKB can typically trench depths of up to 24 inches, with cutting widths of around 4–6 inches depending on chain configuration. The boom and chain setup ensures:
-
Clean trench lines.
-
Reduced kickback during operation.
-
Consistent trenching performance across different soil types.
User-Friendly Hydraulic Controls
Barreto trenchers are known for intuitive control systems:
-
Levers and joysticks are positioned ergonomically for operator comfort.
-
Operators can control chain speed, track movement, and boom depth smoothly.
-
Hydraulic system is designed for efficiency and reliability.

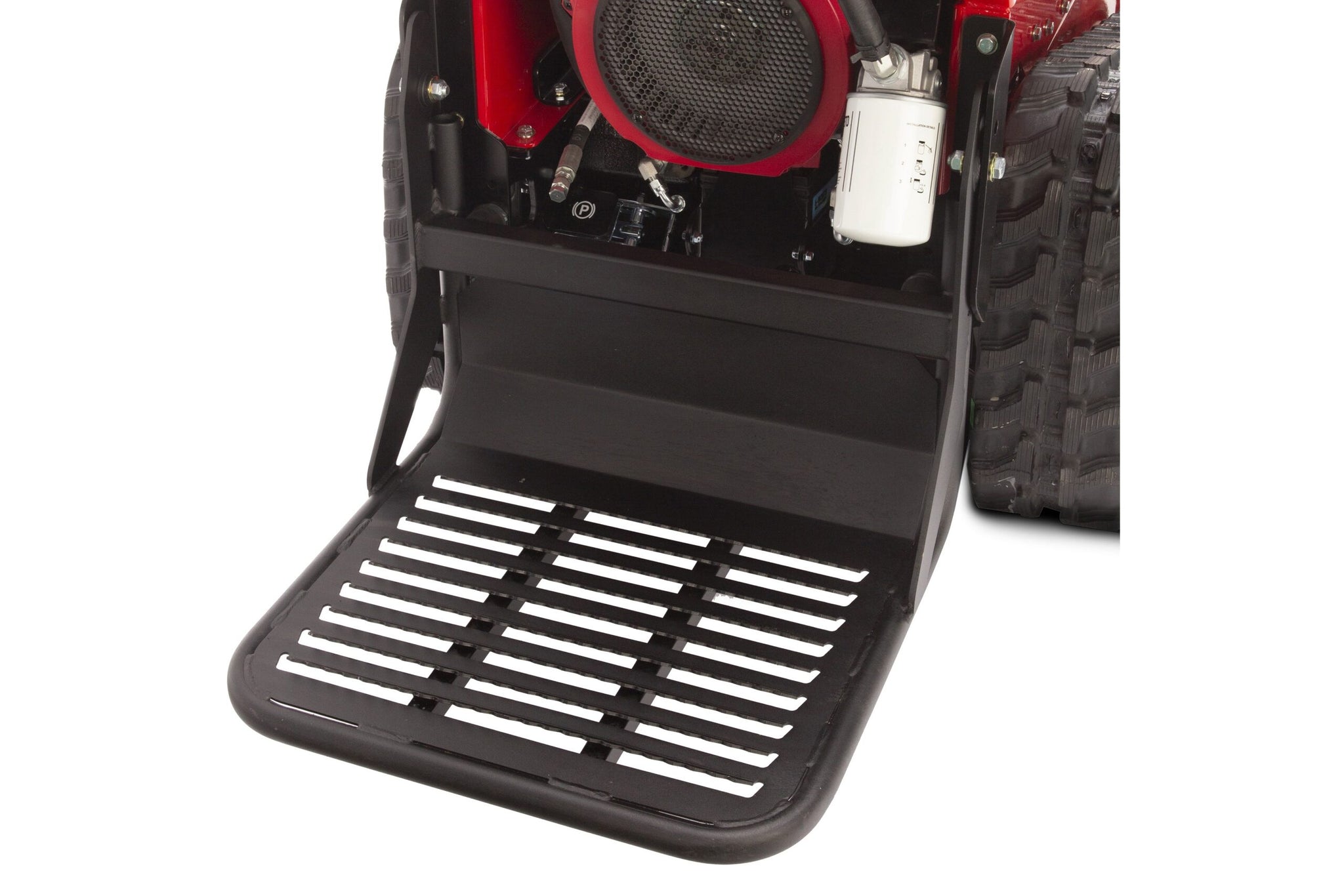

Compact, Stand-On Design
Standing on the operator platform provides:
-
Better visibility over the trenching area.
-
Faster on/off for quick repositioning.
-
Reduced operator fatigue compared to walk-behind models.
Benefits of the Barreto 2324RTKB: Briggs & Stratton Vanguard V-Twin 23hp - TRACK TRENCHER
The Barreto 2324RTKB isn’t just another trencher — it’s a thoughtfully engineered machine designed to maximize productivity and ease of use. Here’s why contractors and rental centers choose it:
Consistent Power
The Briggs & Stratton Vanguard engine keeps running smoothly even under load, so you can complete trenching tasks faster.
Superior Maneuverability
Rubber tracks let you work in muddy yards, rocky backyards, or sandy soil — places wheeled trenchers struggle.
Operator Comfort
The stand-on platform, combined with responsive controls, reduces fatigue over long jobs and makes training easier for new operators.
Lower Maintenance Downtime
Barreto uses sealed pivot points and high-quality hydraulic components that last longer and reduce maintenance costs.
Versatile Applications
The 2324RTKB is perfect for:
-
Irrigation trenches.
-
Electrical conduit and fiber optic line installation.
-
Landscaping features like retaining walls and garden beds.
-
Drainage systems and French drains.
Why Choose a Track Trencher Over a Wheeled Trencher?
For many contractors, the debate between track and wheel trenchers ends when they see the Barreto 2324RTKB in action. Here’s why tracks often win:
-
Better traction on wet, sandy, or uneven terrain.
-
Reduced turf damage: Tracks spread the machine’s weight, preventing deep ruts.
-
Greater stability on slopes: Makes the machine safer for varied job sites.
In short, the Barreto 2324RTKB’s track system means fewer stuck machines and more completed jobs.
Durability That Pays Off
Built in the USA, Barreto trenchers are designed for longevity:
-
Heavy-gauge steel frames withstand years of commercial use.
-
Quality welds and components reduce the chance of breakdowns.
-
Sealed pivot points help keep dirt and moisture out, extending life.
Whether you’re buying for a rental fleet or your own contracting business, this means:
✅ Longer machine lifespan
✅ Lower repair costs
✅ Higher resale value
Tips for Operating the Barreto 2324RTKB Safely & Efficiently
To get the most from your Barreto 2324RTKB: Briggs & Stratton Vanguard V-Twin 23hp - TRACK TRENCHER, remember these best practices:
-
Inspect daily: Check hydraulic hoses, track tension, and engine oil before use.
-
Go slow at first: New operators should practice in an open area.
-
Use proper chain speed: Slower speeds often create cleaner trenches in hard soils.
-
Keep the machine clean: Remove dirt from tracks and chains after use to prevent wear.
Simple habits help keep the machine running at peak performance.
Maintenance Tips
The Barreto 2324RTKB is built to be low maintenance, but here’s what to keep up with:
-
Regular oil and filter changes (follow the engine manual).
-
Check hydraulic fluid levels.
-
Grease pivot points and boom components.
-
Inspect and tighten chain tension regularly.
-
Replace worn teeth and chain parts as needed.
Consistent care helps protect your investment.
Who Should Buy the Barreto 2324RTKB?
The Barreto 2324RTKB: Briggs & Stratton Vanguard V-Twin 23hp - TRACK TRENCHER is ideal for:
-
Professional landscapers installing irrigation.
-
Utility contractors laying conduit and cables.
-
Rental centers seeking rugged, easy-to-use machines.
-
Property managers handling drainage and trenching tasks in-house.
It’s equally at home on residential lawns, large commercial properties, or construction sites.
