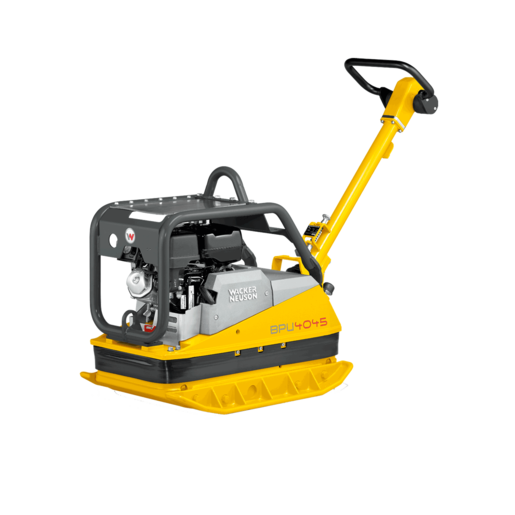

BPU4045A Reversible Vibratory Plate

BPU4045A Reversible Vibratory Plate

SKU: 5100009663
$13,245.00
$9,899.00
Shipping calculated at checkout.



BPU4045A Reversible Vibratory Plate


5100009663

Categories

Compaction ,Vibratory Plates ,Reversible Vibratory Plates ,

Product Detalis

Intuitive control handle: Control of the direction of movement as well as the speed in the same movement sequence

- without changing grip, both hands stay on the control handle
Low hand-arm-vibrations (well below 2.5 m/s)
Height adjustable center pole
Safety setting: Machine moves away from the operator if the control handle is released
Large-sized engine with high power reserves for a long service life
Thick, wear resistant base plate made from nodular cast iron
The engine and tank are protected by a sturdy frame, which is also useful for a sturdy tie-down during transport

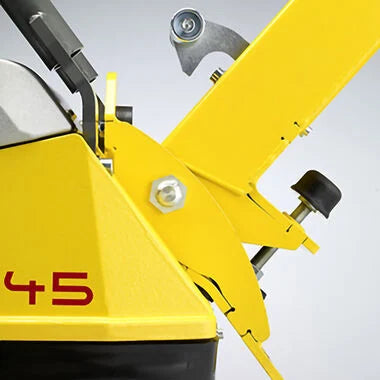

Very sturdy, free from play center pole lock, easy to actuate for a secure transport
Large lifting eye that can be offset to neutral height
All maintenance accesses are quick and easy to reach
Comprehensive protection of the functional parts against stone chipping and dirt accumulation
Due to the low frequency, also suitable for the vibration of heavy interlocking paving stones
Quick and easy assembly of a paving pad possible


ELECTRICAL SYSTEM-2

  • Electrode distance : 0,028 - 0,032 "






ENVIRONMENT DATA-1

  • Storage temperature range : -15 - 40 C


  • Sound level LpA : 90,0 dB(A)


  • Sound level LpA (Standard) : EN 500-4


  • Operating temperature range : -15 - 40 C


  • Uncertainty in measurement HAV : 0,5 m/s2


  • Sound power LWA, measured : 107,0 dB(A)


  • Sound power LWA, guaranteed : 108,0 dB(A)


  • Sound power LWA (Standard) : EN 500-4, 2000/14/EG


  • HAV summation (Standard) : EN 500-4


  • HAV summation (average value) : 2,5 m/s2


ENVIRONMENT DATA-2

  • Storage temperature range : 5 - 104 F


  • Sound level LpA : 90,0 dB(A)


  • Sound level LpA (Standard) : EN 500-4


  • Operating temperature range : 5 - 104 F


  • Uncertainty in measurement HAV : 1,6 ft/s2


  • Sound power LWA, measured : 107,0 dB(A)


  • Sound power LWA, guaranteed : 108,0 dB(A)


  • HAV summation (average value) : 8,2 ft/s2


  • Sound power LWA (Standard) : EN 500-4


  • HAV summation (Standard) : EN 500-4


MECHANICAL - OUTPUT DETAILS-1

  • Vibrations : 4.140 1/min


  • Vibrations (Hz) : 69 Hz


  • Centrifugal force : 40,000 kN


  • Area capacity : 870 m2/h


  • Forward Running : 24,00 m/min


  • Gradeability : 36,4 %


  • Transmission : FKR


MECHANICAL - OUTPUT DETAILS-2

  • Vibrations : 4.140 1/min


  • Vibrations (Hz) : 69 Hz


  • Centrifugal force : 8.992 lbf


  • Area capacity : 9.364,7 ft2/h


  • Forward Running : 1,3 fps


  • Gradeability : 36,4 %


  • Transmission : FKR


Engine-1

  • Cooling : air cooling


  • Engine type : Gasoline engine


  • Engine operating mode : four-stroke


  • Fuel : Gasoline


  • Fuel consumption-Ib/h (Unite) : 1,60 L/hr


  • Cylinder : 1


  • Cylinder capacity : 270 cm3


  • Tank capacity : 5,30 l


  • Oil filling max. : 1,10 l


  • Power rating max. : 6,3 KW


  • Engine speed (Power max.) : 3.600 1/min


  • Standard (Operating power) : ISO 3046 IFN


  • Operating Engine speed : 2.600 1/min


  • Engine Manufacturer : Honda


  • Fuel management : Carburettor


  • Effective power : 5,1 KW


  • Oil specification : SAE 10W-30


  • Standard (Effective power) : SAE J1349


  • Standard (Power max.) : SAE J1349


  • Operating power : 4,6 KW


  • Oil filling min. : 1,10 l


  • Exhaust-gas limit : EPA4/08


  • Starter battery Voltage : 0 V


  • Starter type : Recoil starter


  • Oil volume incl. filter change : 1,10 l


  • Air cleaner : dry air filter


  • Battery capacity (nom. value) : 0 Ah


  • Inclined position max. : 20,0


  • Spark plug(s) : Denso W20EPR-U


  • Electrode distance : 0,7 - 0,8 mm


Engine-2

  • Engine type : Gasoline engine


  • Engine operating mode : four-stroke


  • Fuel : Gasoline


  • Fuel consumption -GPH US (Unite) : 0,4 GPH US


  • Cylinder : 1


  • Cylinder capacity : 16,5 Inch3


  • Tank capacity : 1,4 gal US


  • Oil filling max. : 0,3 gal US


  • Power rating max. : 8,4 hp


  • Engine speed (Power max.) : 3.600 1/min


  • Standard (Operating power) : ISO 3046 IFN


  • Operating Engine speed : 2.600 1/min


  • Engine Manufacturer : Honda


  • Nominal Engine speed : 2.600 1/min


  • Effective power : 6,8 hp


  • Cooling : air cooling


  • Inclined position max. : 20,0


  • Oil specification : SAE 10W-30


  • Standard (Effective power) : SAE J1349


  • Starter battery Voltage : 0 V


  • Starter type : Recoil starter


  • Exhaust-gas limit : EPA4/08


  • Oil volume incl. filter change : 0,3 gal US


  • Air cleaner : dry air filter


  • Battery capacity (nom. value) : 0 Ah


  • Standard (Power max.) : SAE J1349


  • Operating power : 6,2 hp


  • Spark plug(s) : Denso W20EPR-U


  • Electrode distance : 0,028 - 0,032 "










MECHANICAL DETAILS-1

  • Width : 604 mm


  • Height : 1.308 mm


  • Operating weight : 330,0 kg


  • Length Drawbar in op. pos. : 1.661 mm


  • Ground clearance : 725 - 859 mm


MECHANICAL DETAILS-2

  • Width : 23,8 "


  • Height : 51,5 "


  • Operating weight : 727,5 lb


  • Length Drawbar in op. pos. : 65,4 "


  • Ground clearance : 28,5 - 33,8 "


OPERATING FLUIDS-1

  • Tank capacity : 5,30 l


  • Exciter oil volume : 0,75 l


  • Hydraulic fluid type : Renolin MR 520


  • Exciter oil type : 75W-90 API GL-4


  • Hydraulic fluid volume : 0,5 l


OPERATING FLUIDS-2

  • Tank capacity : 1,4 gal US


  • Cooling fluid type : 0


  • Hydraulic fluid type : Renolin MR 520


  • Exciter oil volume : 0,79 qt US


  • Exciter oil type : 75W-90 API GL-4


  • Cooling fluid volume : 0,0 qt US


  • Hydraulic fluid volume : 0,5 qt US




















Comes With

  • Equipment
  • Operator's manual
