Many years of experience in design and operation of surface preparation equipment have been integrated with the latest computer design technology to produce the BEF 275 Multiplane
Description

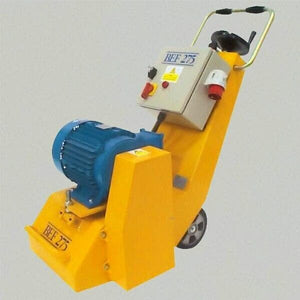

The BEF 275 Multiplane offers the user a machine of compact proportions giving outstanding performance rates in preparing and planing concrete floors. The infinately variable depth control allows for precision planing and texturing whilst maintaining maximum cutter life.
The unique design of the cutter drum - with six shafts and heavy duty cutters - means that the BEF 275 can be used for both preparation and heavy duty planing work.
In common with most other machines of this type, the rotation of the BEF 275 drum allows for cutting on a 'downward motion' where some of the cutting energy is used to propel the machine forward.
Typical Applications
Cleaning and Texturing concrete and asphalt
Removal of paint, rust, grease, ice deposits, line markings, and concrete laitance
Concrete reduction and scabbling
Removal of roof chipping
Grooving applications
Removal of waterproof membranes from bridge and car park decks
Features
50mm (2") dust extraction port
Dust free when operated with SPE 316 vacuum
Six flail shafts, heavy duty T.C.T. cutters
Large diameter wheels for excellent mobility and stability Forward mounted cutter drum for perfect balance
Side plate access for quick and easy cutter drum removal Handle height fully adjustable for operational control Monocoque construction is rigid, strong, and accurate Accurate depth control for precision surface texture and maximum cutter life
